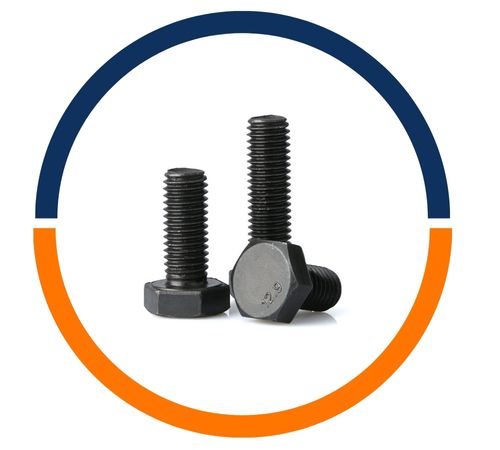

Liam Steel stands out as a top manufacturer and supplier of Alloy Steel Gr 8.8 Bolts in Manila, Philippines. The company focuses on crafting high-strength, durable bolts that offer dependable fastening solutions for both industrial and structural needs. These Grade 8.8 bolts are designed to provide outstanding tensile strength, toughness, and resistance to corrosion, ensuring they perform reliably even in tough conditions. Produced with rigorous quality control and adhering to international standards, Liam Steel promises precise dimensions and consistent mechanical performance. Alloy Steel Gr 8.8 Bolts find extensive use in construction, heavy machinery, automotive, and power generation sectors, delivering secure and stable fastening solutions.
Alloy Steel Gr 8.8 Bolts are crafted from a well-balanced mix of carbon, manganese, chromium, and molybdenum. These bolts go through heat treatment processes like quenching and tempering to achieve impressive tensile strength (around 800 MPa) and yield strength (about 640 MPa), along with remarkable hardness, impact resistance, and fatigue resistance. They maintain their shape and mechanical integrity even under stress, vibration, and high temperatures. The blend of toughness, strength, and durability makes Alloy Steel Gr 8.8 Bolts perfect for heavy-duty industrial and structural applications where secure and long-lasting fastening is essential.
| AStm Standards | DIN ISO EN 4017 & 4014 DIN 933 / 931 & IS 1363 / 1363 |
| Size | Diameter 20 to 100 Milimeter / Inch 3/4 to 3.1/2 |
| Surface Finish | Zinc plated / Plain / Hot dip galvanised |
| CLASS | MATERIAL AND TREATMENT | C | C | P | S | B | TEMPERING TEMP. [C] |
|---|---|---|---|---|---|---|---|
| MIN | MAX | MAX | MAX | MAX | |||
| 8.8 | CARBON STEEL WITH ADDITIVES (E.G. B, MN OR CR) QUENCHED AND TEMPERED | 0.15 (D) | 0.4 | 0.025 | 0.025 | 0.003 | 425 |
| CARBON STEEL QUENCHED AND TEMPERED | 0.25 | 0.55 | 0.035 | 0.025 |
| Grades | Size Range | PS [MPa] | YS (min) [MPa] | TS (min) [MPa] | Hardness [Rockwell] |
|---|---|---|---|---|---|
| Class 8.8 | Under M16 | 580 | 640 | 800 | |
| 17-72 | 600 | 660 | 830 | C23–34 |
| Bolt Dia | Body Dia | Head Dia(F) | Head Height (H) | Degree of Slope | |||
|---|---|---|---|---|---|---|---|
| (D) | Max | Max Edge Sharp | Min Edge Sharp | Absolute Min Rounded | Max | Min | |
| 1/2 | 0.515 | 0.935 | 0.905 | 0.845 | 0.269 | 0.233 | 78° to 82° |
| 5/8 | 0.642 | 1.169 | 1.132 | 1.066 | 0.336 | 0.292 | 78° to 82° |
| 3/4 | 0.768 | 1.402 | 1.357 | 1.285 | 0.403 | 0.349 | 78° to 82° |
| 7/8 | 0.895 | 1.637 | 1.584 | 1.511 | 0.47 | 0.408 | 78° to 82° |
| 1 | 1.022 | 1.869 | 1.81 | 1.735 | 0.537 | 0.466 | 78° to 82° |
| 1-1/8 | 1.149 | 2.104 | 2.037 | 1.962 | 0.604 | 0.525 | 78° to 82° |
| 1-1/4 | 1.277 | 2.337 | 2.262 | 2.187 | 0.671 | 0.582 | 78° to 82° |
| 1-3/8 | 1.404 | 2.571 | 2.489 | 2.414 | 0.738 | 0.641 | 78° to 82° |
| 1-1/2 | 1.531 | 2.804 | 2.715 | 2.64 | 0.805 | 0.698 | 78° to 82° |
| Dimensions per ASME B18.5 1990 (R 1998) | |||||||
| Diameter Chart | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pitch List | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | ||||||||
| GR A Length | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 150 | Grade A not applicable to these dia’s | ||||||||||||
Head Across Flat (S) Nom = Max Min GR A GR B | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | GR A not applicable to these diameters | |||||||||
| 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
Head Height Nom Tol + or – GR A GR B | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| 0.125 | 0.15 | 0.18 | 0.215 | GR A not applicable to these diameters | |||||||||||||||||
| 0.2 | 0.24 | 0.29 | 0.35 | 0.42 | 0.5 | ||||||||||||||||
Across corners e Min GR A GR B | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | GR A not applicable to these diameters | ||||||||
| 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
Thread Length (b) For lengths < or = 125ilimeter For lengths > 12ilimeter <= 200milimeter For lengths > 200ilimeter | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | Not specified as full thread recommended | ||||||
| 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | |
| 33 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | |
| Major Diameter at thread (minimum) | 3.838 | 4.826 | 5.794 | 7.76 | 9.732 | 11.701 | 13.682 | 15.682 | 17.623 | 19.623 | 21.623 | 23.577 | 26.577 | 29.522 | 32.522 | 35.465 | 38.465 | 41.437 | 44.437 | 47.399 | 51.399 |
| Major Dia at thread (maximum) | 3.978 | 4.976 | 5.974 | 7.972 | 9.968 | 11.966 | 13.962 | 15.962 | 17.958 | ||||||||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Alloy Steel Gr 8.8 Bolts in Manila, Philippines. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your Alloy Steel Gr 8.8 Bolts needs!
Alloy Steel Gr 8.8 Bolts are extensively utilized in industries that demand strong, reliable, and durable fastening components. They are particularly suited for construction projects, automotive assemblies, heavy machinery, power plants, and oil and gas installations. These bolts are frequently used to assemble engines, gearboxes, pressure vessels, and high-load structural components. Their superior mechanical strength and corrosion resistance ensure secure connections, even in the face of vibration, heavy loads, and extreme conditions.
