Liam Steel is a prominent manufacturer and supplier based in Manila, Philippines, specializing in top-notch Carbon Steel A182 Flanges. These flanges are designed to provide reliable and durable steel solutions for various industrial and piping applications. Renowned for their strength, precision, and ability to withstand high pressure, they are perfect for use in pipelines, refineries, power plants, and the chemical sector. Liam Steel guarantees that each flange adheres to strict quality standards, ensuring accurate dimensions, a smooth surface finish, and long-lasting performance. With a solid reputation among contractors, fabricators, and industrial clients throughout the Philippines, Liam Steel has become a trusted name in premium steel products.
Carbon Steel A182 Flanges are crafted from medium carbon steel with a carefully controlled composition, featuring a maximum carbon content of 0.30%, manganese ranging from 0.60% to 1.05%, and minimal amounts of phosphorus and sulfur. This specific blend results in outstanding tensile strength, toughness, and weldability. Typically, these flanges boast a tensile strength between 485 and 620 MPa, along with a yield strength of 205 to 275 MPa. Built to endure high pressure and temperature conditions, A182 flanges are known for their durability and reliability. Their well-balanced mechanical properties make them an excellent choice for heavy-duty piping systems and structural applications, ensuring they perform well in demanding industrial settings.
Specifications :Â ASTM A182 / ASME SA182
Dimensions :Â ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :Â ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ to 36″
Class / Pressure :Â 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

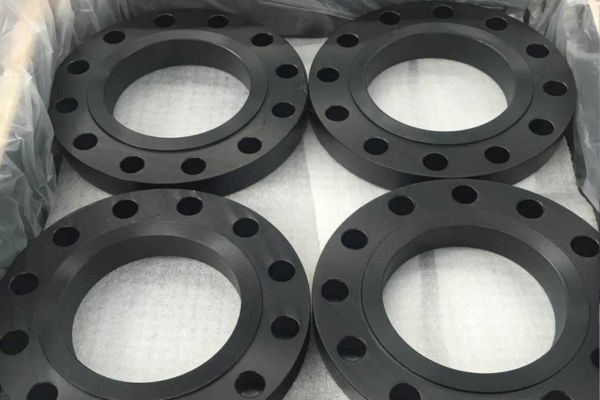

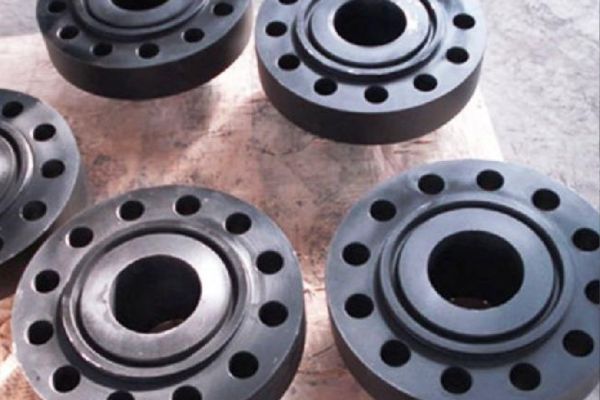

Flange Face Type :Â Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is one of the most prominent manufacturers and suppliers of superior quality Carbon Steel A182 Flanges in Manila, Philippines. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â

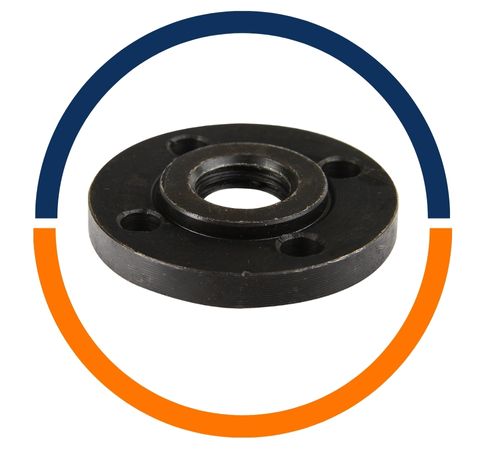

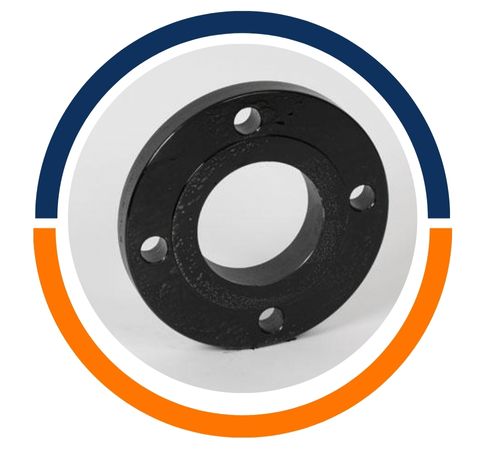

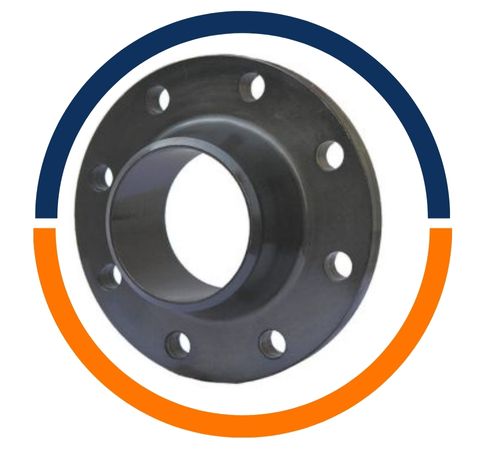

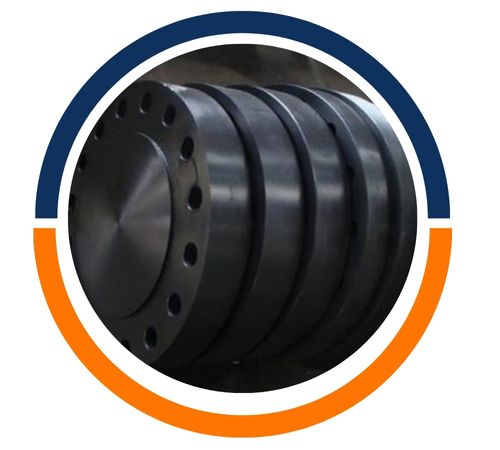

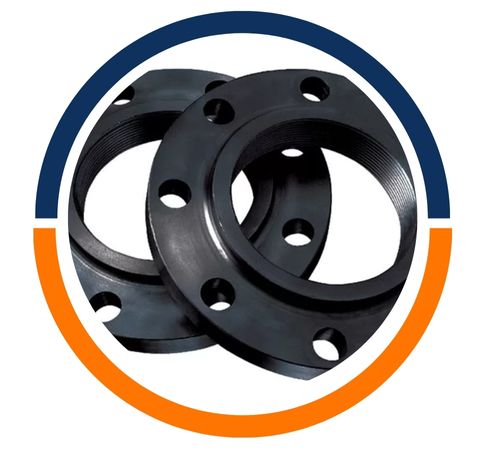

| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| Size in inches | Outer Dia. | Size in millimeter | RF Height | Flange Thick. | RF Diam. | PCD | Bolt Size UNC | No of Bolts | Machine Bolt Lengths | Hole Size | RF Stud Length | ISO Stud Size | Weight in kg |
| Â | A | Â | D | B | C | E | Â | Â | Â | Â | Â | Â | Â |
| 1/2 | 90 | 15 | 2 | 9.6 | 34.9 | 60.3 | 1/2 | 4 | 50 | 5/8 | 55 | M14 | 0.9 |
| 3/4 | 100 | 20 | 2 | 11.2 | 42.9 | 69.9 | 1/2 | 4 | 50 | 5/8 | 65 | M14 | 0.9 |
| 1 | 110 | 25 | 2 | 12.7 | 50.8 | 79.4 | 1/2 | 4 | 55 | 5/8 | 65 | M14 | 0.9 |
| 1 1/4 | 115 | 32 | 2 | 14.3 | 63.5 | 88.9 | 1/2 | 4 | 55 | 5/8 | 70 | M14 | 1.4 |
| 1 1/2 | 125 | 40 | 2 | 15.9 | 73 | 98.4 | 1/2 | 4 | 65 | 5/8 | 70 | M14 | 1.8 |
| 2 | 150 | 50 | 2 | 17.5 | 92.1 | 120.7 | 5/8 | 4 | 70 | 3/4 | 85 | M16 | 2.3 |
| 2 1/2 | 180 | 65 | 2 | 20.7 | 104.8 | 139.7 | 5/8 | 4 | 75 | 3/4 | 90 | M16 | 3.2 |
| 3 | 190 | 80 | 2 | 22.3 | 127 | 152.4 | 5/8 | 4 | 75 | 3/4 | 90 | M16 | 4.1 |
| 3 1/2 | 215 | 90 | 2 | 22.3 | 139.7 | 177.8 | 5/8 | 8 | 75 | 3/4 | 90 | M16 | 5.9 |
| 4 | 230 | 100 | 2 | 22.3 | 157.2 | 190.5 | 5/8 | 8 | 75 | 3/4 | 90 | M16 | 7.7 |
| 5 | 255 | 125 | 2 | 22.3 | 185.7 | 215.9 | 3/4 | 8 | 85 | 7/8 | 95 | M20 | 9.1 |
| 6 | 280 | 150 | 2 | 23.9 | 215.9 | 241.3 | 3/4 | 8 | 85 | 7/8 | 100 | M20 | 11.8 |
| 8 | 345 | 200 | 2 | 27 | 269.9 | 298.5 | 3/4 | 8 | 90 | 7/8 | 110 | M20 | 20.5 |
| 10 | 405 | 250 | 2 | 28.6 | 323.8 | 362 | 7/8 | 12 | 100 | 1 | 115 | M24 | 32 |
| 12 | 485 | 300 | 2 | 30.2 | 381 | 431.8 | 7/8 | 12 | 100 | 1 | 120 | M24 | 50 |
| 14 | 535 | 350 | 2 | 33.4 | 412.8 | 476.3 | 1 | 12 | 115 | 1 1/8 | 135 | M27 | 64 |
| 16 | 595 | 400 | 2 | 35 | 469.9 | 539.8 | 1 | 16 | 115 | 1 1/8 | 135 | M27 | 82 |
| 18 | 635 | 450 | 2 | 38.1 | 533.4 | 577.9 | 1 1/8 | 16 | 125 | 1 1/4 | 145 | M30 | 100 |
| 20 | 700 | 500 | 2 | 41.3 | 584.2 | 635 | 1 1/8 | 20 | 140 | 1 1/4 | 160 | M30 | 130 |
| 24 | 815 | 600 | 2 | 46.1 | 692.2 | 749.3 | 1 1/4 | 20 | 150 | 1 3/8 | 170 | M33 | 196 |
Carbon Steel A182 Flanges find extensive use in the oil and gas sector, power generation, chemical processing, and various industrial piping systems. They are perfect for connecting pipes, valves, pumps, and other equipment in high-pressure and high-temperature environments. Fabricators rely on them for pipelines, refineries, and structural frameworks that demand strength and precision. Thanks to their excellent weldability and toughness, A182 flanges are also ideal for custom engineering projects, including pressure vessels and industrial machinery. Their durability and reliability make them a go-to choice for professionals in the field.
