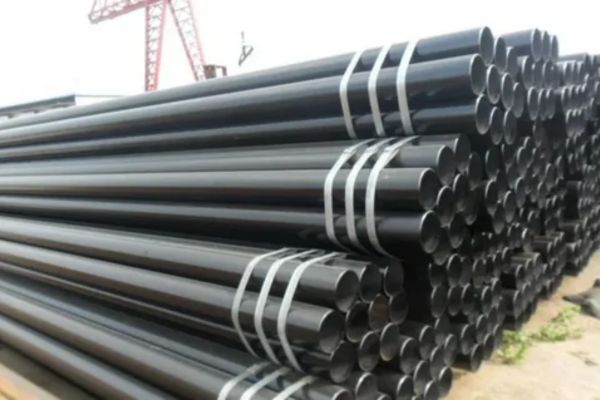

Liam Steel, located in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality Carbon Steel DIN 2440 Pipes. They offer durable and reliable solutions for a variety of industrial and mechanical applications. Known for their precision engineering and commitment to international standards, Liam Steel guarantees that each DIN 2440 pipe boasts exceptional strength, toughness, and wear resistance. These pipes are specifically designed to thrive in high-stress and fatigue-prone environments, making them perfect for the automotive, machinery, and manufacturing sectors. With a strong emphasis on quality, timely delivery, and outstanding customer service, Liam Steel has built a reputation as a trusted provider of premium carbon steel piping solutions both locally and internationally.
Carbon Steel DIN 2440 Pipes are medium-carbon alloy steel pipes, typically composed of 0.25–0.45% carbon, 0.50–1.20% manganese, along with trace amounts of phosphorus and sulfur. These pipes are known for their excellent mechanical properties, which include high tensile strength, yield strength, and hardness. To enhance toughness, fatigue resistance, and machinability, DIN 2440 Pipes undergo heat treatment, ensuring they perform reliably in demanding industrial and mechanical conditions. Their durability and mechanical stability make them suitable for high-pressure and critical applications.
| Steel Grade | C | Si | Mn | Cr | Ni | Mo |
| St 33 | It is not normalized | |||||
| Steel Grade | Tensile Strength,N/mm2(min) | Yield Strength,N/mm2(min) | Elongation, % (min) |
| St 33.2 | 290 – 310 | 185 | 18 |
| DIN 2440 | ||||||
| DN | Zoll | d | s | kg/m | ||
| schwarz | verzinkt | |||||
| 8 | 1/4 | 13.5 | 2.35 | 0.65 | 0.68 | |
| 10 | 3/8 | 17.2 | 2.35 | 0.85 | 0.89 | |
| 15 | 1/2 | 21.3 | 2.65 | 1.22 | 1.27 | |
| 20 | 3/4 | 26.9 | 2.65 | 1.58 | 1.65 | |
| 25 | 1 | 33.7 | 3.25 | 2.44 | 2.55 | |
| 32 | 1 1/4 | 42.4 | 3.25 | 3.14 | 3.28 | |
| 40 | 1 1/2 | 48.3 | 3.25 | 3.61 | 3.77 | |
| 50 | 2 | 60.3 | 3.65 | 5.10 | 5.33 | |
| 65 | 21/2 | 76.1 | 3.65 | 6.51 | 6.80 | |
| 80 | 3 | 88.9 | 4.05 | 8.47 | 8.85 | |
| 100 | 4 | 114.3 | 4.5 | 12.10 | 12.64 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel DIN 2440 Pipe products in Manila, Philippines. Specializing in premium steel materials, we offer an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse selection includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a commitment to dependable delivery and exceptional customer service, Jaxon Steel ensures the supply of superior materials that provide outstanding performance across various industrial applications. Trust Jaxon Steel for all your Carbon Steel DIN 2440 Pipe requirements.
| Nominall Width> | Conn- ecting nomin- al width of the flttings according to DIN 2950 and DIN 2980 | Whit- worth- pipe threads according to DIN 2999 Part1 | Tube | Screw thread | Corresponding socket according to DIN 2986 | ||||||||
| Outside diameterd1 | Wall thick- nesss | Weight | Theo- retical screw thread diameter d2 | Threads per 25.4mm | Usable screw thread length J min at a max. | Distance of screw thread dlameter d2 from tube end | Outside diameter | Length | |||||
| Plain-end tube kg/m | socketed tubekg/m | a max. | a min. | min. | min. | ||||||||
| 6 | 1/8 | R 1/8 | 10.2 | 2.0 | 0.407 | 0.410 | 9.728 | 28 | 7.4 | 4.9 | 3.1 | 14 | 17 |
| 8 | 1/4 | R 1/4 | 13.5 | 2.35 | 0.650 | 0.654 | 13.157 | 19 | 11.0 | 7.3 | 4.7 | 15.4 | 25 |
| 10 | 3/8 | R 3/8 | 17.2 | 2.65 | 0.852 | 0.858 | 16.662 | 19 | 11.4 | 7.7 | 5.1 | 21.3 | 26 |
| 15 | 1/2 | R 1/2 | 21.3 | 2.65 | 1.22 | 1.23 | 20.955 | 14 | 15.0 | 10.0 | 6.4 | 26.4 | 34 |
| 20 | 3/4 | R 3/5 | 26.9 | 2.65 | 1.58 | 1.59 | 26.441 | 14 | 16.3 | 11.3 | 7.7 | 31.8 | 36 |
| 25 | 1 | R 1 | 33.7 | 3.25 | 2.44 | 2.46 | 33.249 | 11 | 19.1 | 12.7 | 8.1 | 39.5 | 43 |
| 32 | 1 1/4 | R 1 1/4 | 42.4 | 3.25 | 3.14 | 3.17 | 41.910 | 11 | 21.4 | 15.0 | 10.4 | 48.3 | 48 |
| 40 | 1 1/2 | R 1 1/2 | 48.3 | 3.25 | 3.61 | 3.64 | 47.803 | 11 | 21.4 | 15.0 | 10.4 | 54.5 | 48 |
| 50 | 2 | R 2 | 60.3 | 3.65 | 5.10 | 5.17 | 59.614 | 11 | 25.7 | 18.2 | 13.6 | 66.3 | 56 |
| 65 | 2 1/2 | R 2 1/2 | 76.1 | 3.65 | 6.51 | 6.63 | 75.184 | 11 | 30.2 | 21.0 | 14.0 | 82 | 65 |
| 80 | 3 | R 3 | 88.9 | 4.05 | 8.47 | 8.64 | 87.884 | 11 | 33.3 | 241 | 17.1 | 95 | 71 |
| 100 | 4 | R4 | 114.3 | 4.5 | 12.1 | 12.4 | 113.030 | 11 | 39.3 | 28.9 | 21.9 | 122 | 83 |
| 125 | 5 | R 5 | 139.7 | 4.85 | 16.2 | 16.2 | 138.430 | 11 | 43.6 | 32.1 | 25.1 | 147 | 92 |
| 150 | 6 | R 6 | 165.1 | 4.85 | 19.2 | 19.8 | 163.830 | 11 | 43.6 | 32.1 | 25.1 | 174 | 92 |
| 1) Referred to an average length of 6m | |||||||||||||
These Carbon Steel DIN 2440 Pipes find extensive use in industries that require high-strength, wear-resistant, and precision-engineered components. They are perfect for manufacturing automotive parts like shafts, gears, and axles, as well as components for mechanical engineering, industrial machinery, and high-stress tools. Additionally, these pipes are utilized in applications where toughness, fatigue resistance, and dimensional accuracy are essential. The combination of superior mechanical properties, durability, and reliability makes DIN 2440 Pipes the go-to choice for the automotive, manufacturing, and heavy engineering sectors in search of long-lasting carbon steel piping solutions.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
