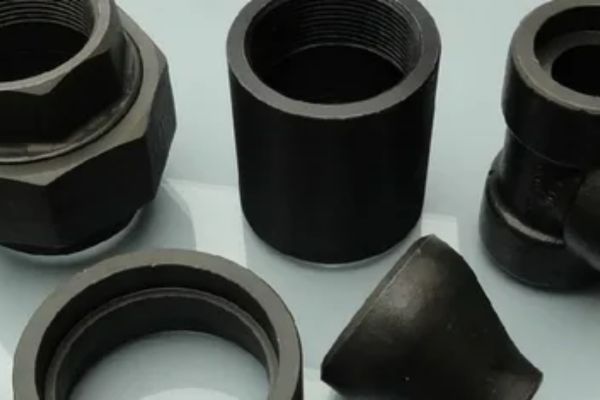

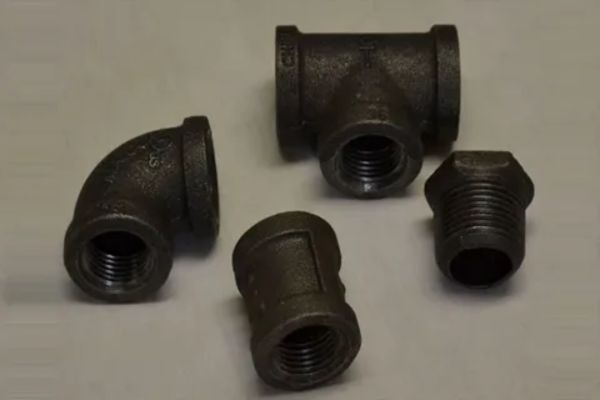

Liam Steel stands out as a reliable manufacturer and supplier of Carbon Steel F46 Forged Fittings right here in Manila, Philippines. We take pride in offering top-notch forged components that are built for strength and dependability, especially in tough environments. Our F46 forged fittings are crafted to deliver outstanding toughness, resist corrosion, and ensure leak-proof performance even in high-pressure systems. With precision manufacturing that meets ASTM and ASME standards, these fittings are perfect for connecting pipelines across various industries, including oil and gas, petrochemical, power generation, and marine engineering. At Liam Steel, we guarantee exceptional dimensional accuracy, durability, and consistent quality throughout our entire range of forged fittings.
The Carbon Steel F46 Forged Fittings are made up of a well-balanced mix of carbon (0.20–0.30%), manganese (0.60–1.00%), silicon (≤0.35%), phosphorus (≤0.035%), and sulfur (≤0.040%). This thoughtful composition gives them impressive strength, ductility, and impact resistance. These fittings boast a tensile strength ranging from 415 to 585 MPa and a yield strength of about 240 MPa, making them capable of handling high pressure. They also offer good machinability and weldability, which makes them ideal for fabrication and installation in critical systems. Their toughness and resistance to stress corrosion ensure they last under extreme working conditions.
Standard : ASTM A694 / ASME SA 694
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

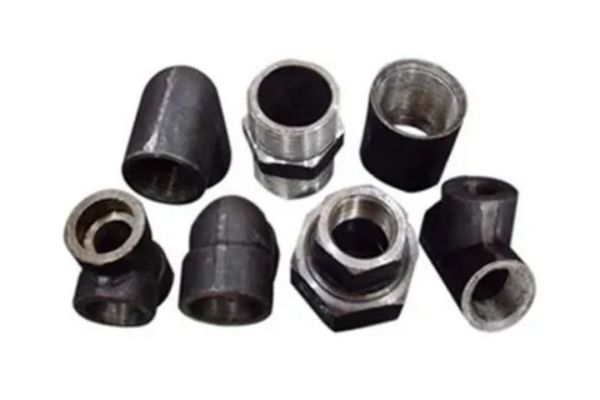

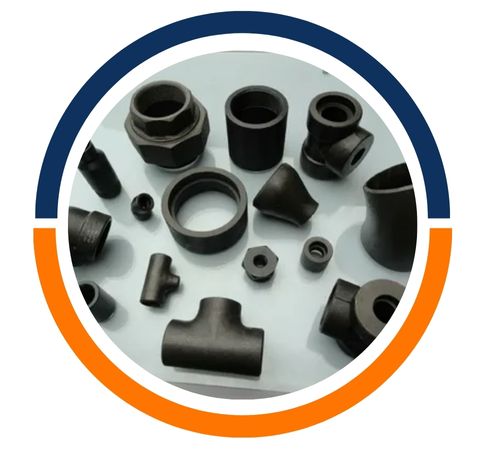

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F46 | 0.13-0.20 | 0.20-0.40 | 1.20-1.60 | ≤ 0.030 | ≤ 0.020 | – | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | – | – |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 46 | 60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

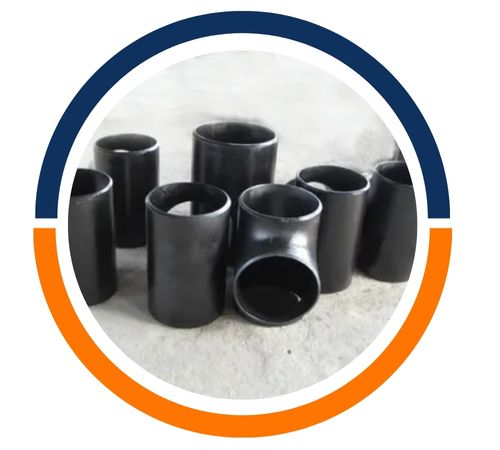

| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F46 Forged Screwed Elbows, Street Elbow, Carbon Steel F46 Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F46 Reducing Coupling, Carbon Steel F46 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F46 Threaded Bushing, Carbon Steel F46 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F46 Barrel Nipples, CS F46 Forged Threaded Boss, Carbon Steel F46 Forged Hex Head Bull Plugs |

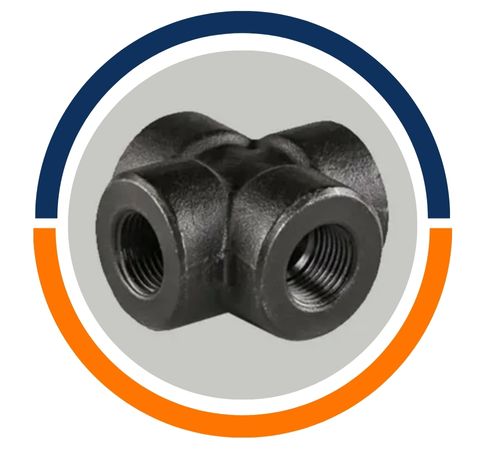

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F46 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS F46 caps, 3000LB Socket Weld Cross |

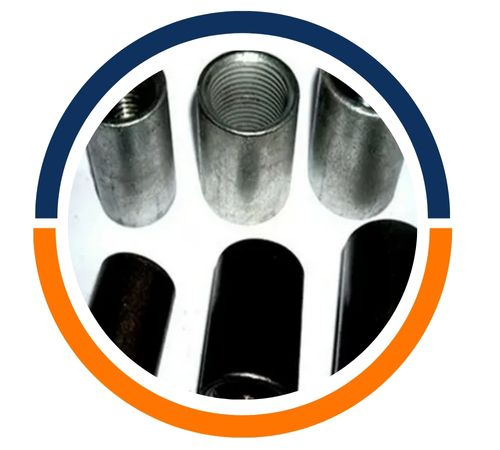

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS F46 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F46 Coupling |
Carbon Steel F46 Forged Fittings are essential in industries that need strong and secure piping connections, especially under high pressure and temperature. You’ll find them commonly used in refineries, power plants, petrochemical facilities, and oil and gas pipelines. These fittings are perfect for systems that transport steam, gas, oil, and other fluids where safety and strength are paramount. Available in various configurations like elbows, tees, couplings, unions, and caps, F46 forged fittings provide tight, reliable joints and leak-free performance in industrial piping networks, contributing to the overall efficiency and safety of operations.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
