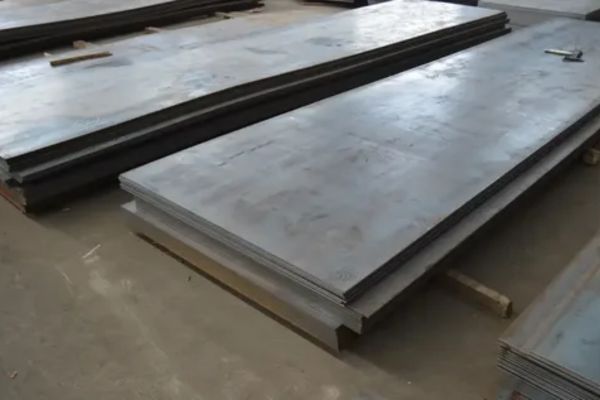

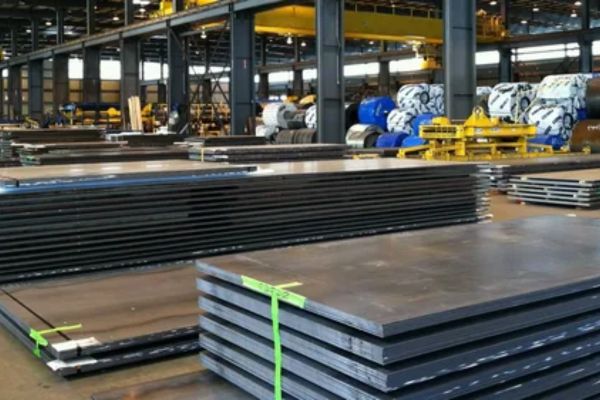

Liam Steel, a reputable manufacturer and supplier located in Manila, Philippines, specializes in **SA 516 GR.60/70N NACE Plates** that are crafted for high-performance use in corrosive and pressure-sensitive environments. These carbon steel plates are built to comply with both ASTM A516/ASME SA516 standards and NACE MR0175/ISO 15156 requirements for sour service, ensuring they resist sulfide stress cracking exceptionally well. With a commitment to precise manufacturing, stringent quality control, and consistent mechanical properties, Liam Steel delivers plates that are incredibly reliable for the oil, gas, petrochemical, and offshore sectors. Prioritizing durability and safety, Liam Steel offers solutions that can handle the toughest industrial conditions.
The **SA 516 GR.60/70N NACE Plates** are made from a blend of carbon, manganese, phosphorus, sulfur, and silicon, providing a well-rounded mix of strength and ductility. They boast a minimum yield strength of 260–290 MPa (Grade 60) or 345 MPa (Grade 70), with tensile strength ranging from 415–620 MPa. These plates are known for their excellent notch toughness at low temperatures and are suitable for welding, forming, and fabrication in sour service conditions. Manufactured under ASTM A516 with NACE compliance, they promise outstanding performance and structural integrity in challenging operating environments.
| Grade | ASME SA 516 GR.60/70N Boiler Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 415-550 MPa | 250 MPa | 21 | 25 |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
Jaxon Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.60/70N NACE Plates​ in Manila, Philippines. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.60/70N NACE Plates​ needs!
**SA 516 GR.60/70N NACE Plates** find extensive use in pressure vessels, boilers, heat exchangers, and storage tanks for oil and gas, petrochemical, and offshore applications. They are particularly well-suited for environments where resistance to sulfide stress cracking is crucial, such as in sour gas processing, refineries, and chemical plants. Additionally, these plates are utilized in pipeline fabrication and structural components that face corrosive conditions. Their blend of high strength, toughness, weldability, and NACE-compliant corrosion resistance makes them a vital choice for industries that demand safety, durability, and long-lasting reliability.
