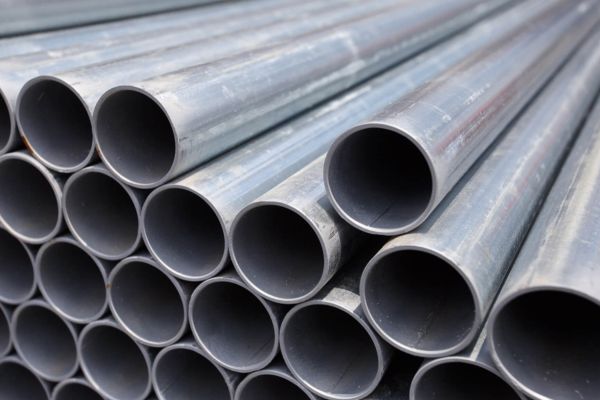

Liam Steel, a prominent manufacturer and supplier based in Manila, Philippines, offers premium-quality Alloy Steel P11 Pipes designed for superior performance in high-temperature and high-pressure environments. Manufactured with precision and adherence to international standards, these pipes are widely used in power generation, petrochemical, and oil & gas industries. The Alloy Steel P11 Pipes from Liam Steel are known for their exceptional durability, corrosion resistance, and thermal stability. With state-of-the-art production facilities and a commitment to excellence, Liam Steel ensures that each pipe delivers outstanding strength, longevity, and reliability for demanding industrial applications worldwide.
Alloy Steel P11 Pipes are composed primarily of chromium (1–1.5%) and molybdenum (0.44–0.65%), with carbon, manganese, phosphorus, sulfur, and silicon in balanced proportions. This unique alloy combination enhances hardness, tensile strength, and resistance to oxidation and creep under elevated temperatures. The pipes exhibit a tensile strength of around 415 MPa, yield strength of 205 MPa, and excellent elongation properties. These mechanical features make P11 pipes suitable for high-pressure operations, offering consistent performance, dimensional accuracy, and superior resistance to wear and deformation during extended service life.

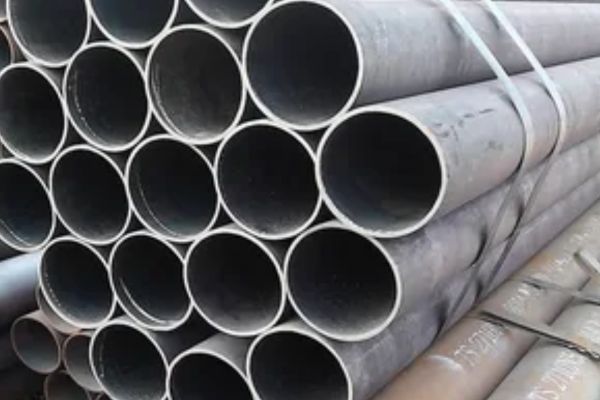

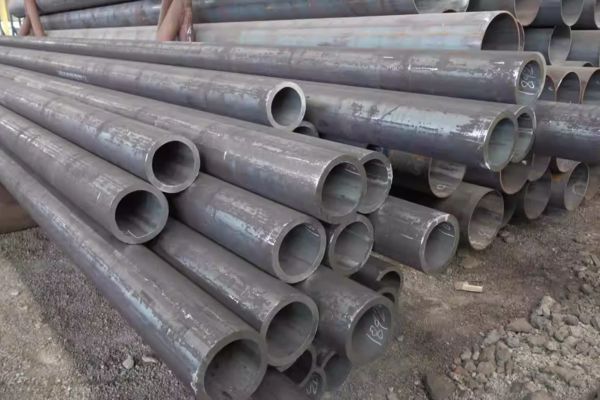

| Type | Seamless / ERW / Welded / Fabricated |
| Standard | ASTM A335 P11, SA335 P11 (with IBR Test Certificate) |
| Craft | Cold rolled and Cold drawn |
| Length | Standard Double & In Cut length also. |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Size | 1/2” NB to 36” NB |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Specialized in | Large Diameter ASTM A335 P11 Pipe |

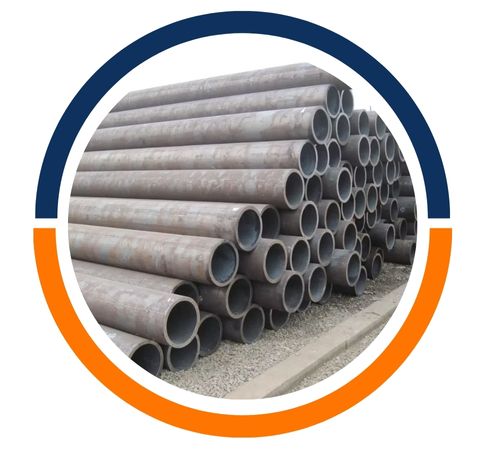

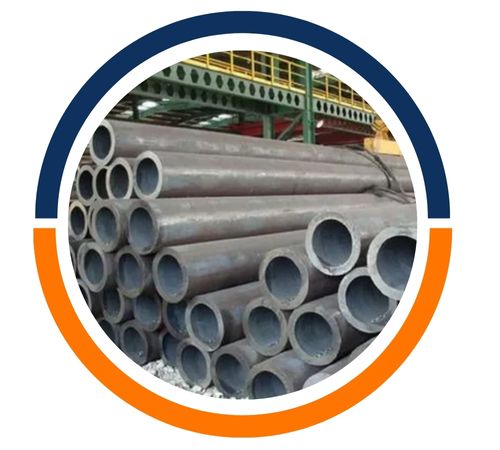

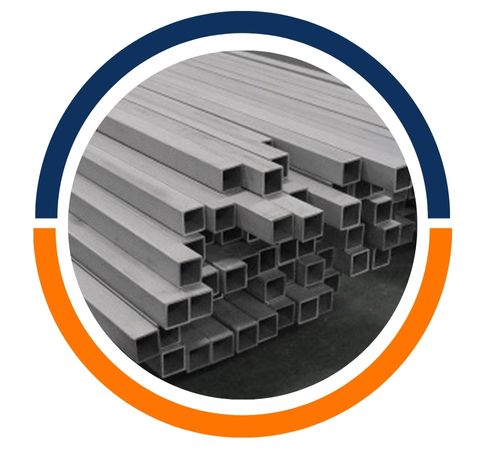

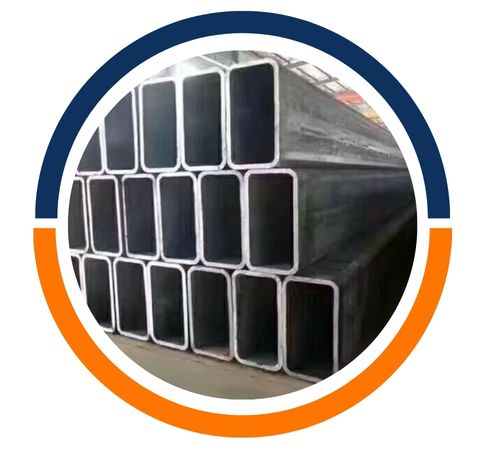

| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| End | Plain End, Beveled End, Treaded |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Thickness | 3-12mm |
| Alloy Steel P11 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is a major manufacturer and a supplier of premium Alloy Steel P11 pipe in Manila, the Philippines. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | Equivalent Material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|---|
| A335 P11 | SA335 P11 | T11 | STPA 23 | K11597 | 3604 P1 621 | – | – | ABS 11 | KSTPA 23 | – |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P11 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
Alloy Steel P11 Pipes are extensively used in industries that demand strength, heat resistance, and corrosion protection. They are ideal for power plants, refineries, and chemical processing facilities where steam and high-temperature fluids are transported. These pipes are commonly employed in boilers, superheaters, heat exchangers, and pressure vessels. Their ability to withstand extreme temperatures and pressures makes them suitable for use in oil & gas pipelines and thermal power systems. P11 pipes are also favored in energy generation and petrochemical sectors due to their durability, reliability, and long service life under harsh operating conditions.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
