Liam Steel, a top-notch manufacturer and supplier located in Manila, Philippines, specializes in high-quality Alloy Steel P12 Pipes. These pipes are celebrated for their remarkable strength, durability, and ability to withstand high-temperature environments. Crafted with cutting-edge metallurgical techniques and premium raw materials, they guarantee outstanding mechanical performance and precise dimensional accuracy. Liam Steel is committed to upholding rigorous international quality standards, ensuring that their products meet the demands of various industrial applications. Alloy Steel P12 Pipes find their place in power generation, petrochemical, and oil & gas industries, delivering long-lasting performance, impressive creep resistance, and toughness in critical pipelines and high-pressure systems.
Alloy Steel P12 Pipes generally consist of carbon (0.05–0.15%), chromium (0.9–1.2%), molybdenum (0.45–0.65%), and manganese (0.3–0.6%), along with small amounts of silicon and phosphorus. This specific blend gives them excellent high-temperature strength, creep resistance, and toughness. The pipes can achieve tensile strength up to 585 MPa, yield strength around 415 MPa, and an elongation of about 25%. With superior resistance to oxidation and thermal fatigue, Alloy Steel P12 Pipes are ideal for high-pressure and high-temperature applications in both industrial and power-generation sectors.
| Size | 1/8NB TO 24NB IN |

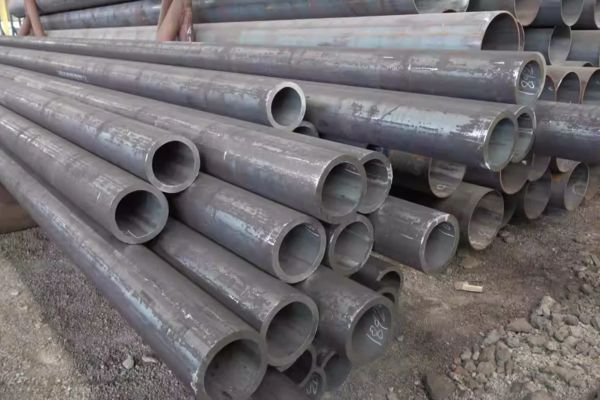

| Type | Seamless |
| Outer Dimensions | 19.05mm – 114.3mm |
| ASTM A335 P12 Pipe Wall Thickness | 2.0mm – 14 mm |
| Length | max 16000mm |
| Schedule | Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thk. |
| Length | Single Random, Double Random & Cut Length. |
| Tubing End | Plain End, Beveled End, Treaded. |
| Standard | ASTM A335 P12, SA335 P12 (with IBR Test Certificate) |
| Thickness | 3-12mm |
| Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |

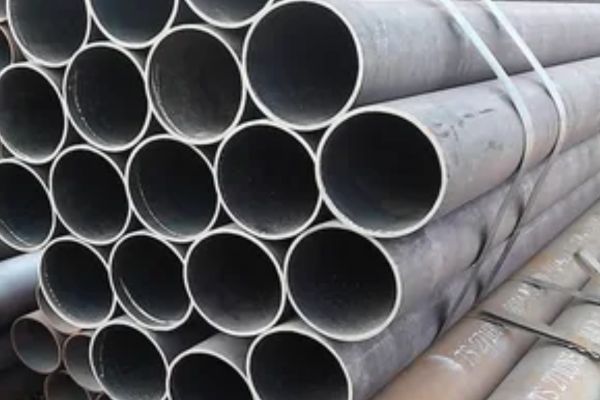

| Type | Seamless / ERW / Welded / Fabricated |

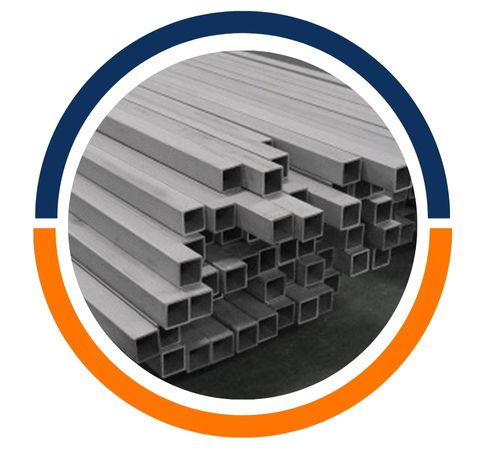

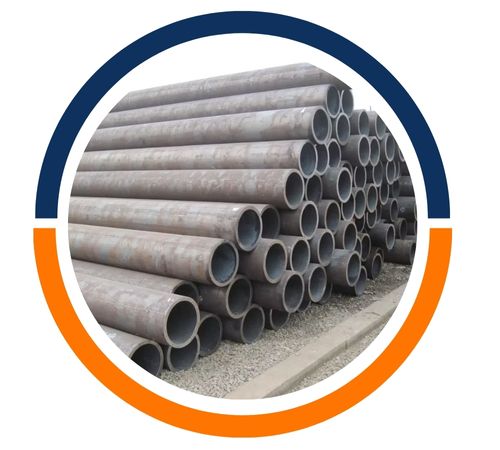

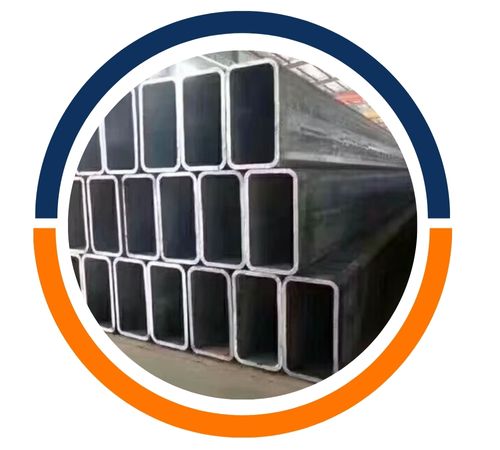

| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Length | Standard Double & In Cut length also. |
| Specialized in | Large Diameter SA335 P12 |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Alloy Steel P12 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is a major manufacturer and a supplier of premium Alloy Steel P12 pipe in Manila, the Philippines. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | Equivalent material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|---|
| A335 P12 | SA335 P12 | T12 | STPA 22 | K11562 | 3604 P1 620-440 | 17175 13CrMo44 | – | ABS 12 | KSTPA 22 | Sec 2 1Cr 1/2Mo440 |
| Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Sec 3 1Cr 1/2Mo440 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P12 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
Alloy Steel P12 Pipes are widely utilized in industries that demand high-temperature and high-pressure resilience. They are frequently found in power plants, serving as boiler tubes, superheater tubes, and heat exchangers. In the petrochemical and oil & gas industries, P12 Pipes are essential for pipelines, pressure vessels, and piping systems that endure elevated temperatures. Thanks to their excellent creep resistance and toughness, they are also suitable for furnace tubes, chemical processing equipment, and industrial boilers. Moreover, Alloy Steel P12 Pipes play a vital role in heavy machinery and equipment, ensuring reliability and performance in demanding environments.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
