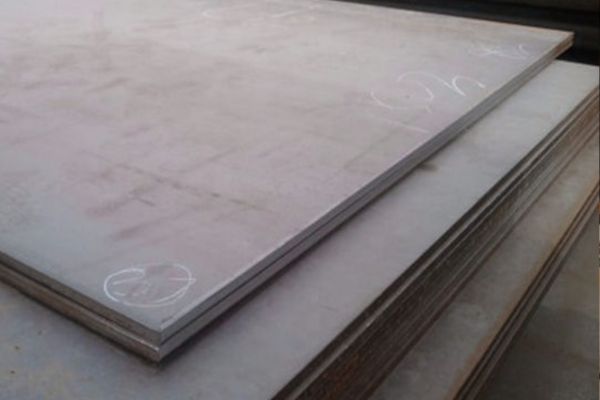

Liam Steel is a well-respected manufacturer and supplier located in Manila, Philippines, specializing in high-quality **ARCELOR 400 Sheets and Plates** that are built to withstand wear and impact. This company has earned a reputation for delivering durable, high-performance steel plates that comply with international standards, making them perfect for tough and abrasive applications. Thanks to cutting-edge manufacturing techniques and rigorous quality control, Liam Steel guarantees exceptional toughness, hardness, and reliability in every product. The ARCELOR 400 plates are particularly suited for industries like mining, construction, earthmoving, and material handling, where durability and wear resistance are crucial.
These **ARCELOR 400 Sheets and Plates** are crafted from high-strength, quenched, and tempered wear-resistant steel. Their chemical makeup includes carbon, manganese, silicon, and trace amounts of chromium and nickel, which boost their hardness and mechanical strength. Typically, these plates boast a Brinell hardness of around 400 HB and impressive tensile strength, offering outstanding resistance to abrasion, impact, and surface wear. Despite their toughness, ARCELOR 400 plates are still easy to form, machine, and weld, making them ideal for both fabrication and repair tasks in industrial settings.
Item: ARCELOR 400
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Internal grade | Thk (mm) | %C Max | %Mn Max | %P Max | %S Max | %SI Max | %Cr Max | %Ni Max | %Mo Max | B Max | CE Max |
| SRDQH40 | Up to 20 | 0.16 | 1.60 | 0.025 | 0.010 | 0.70 | 0.50 | 0.25 | 0.25 | 40 ppm | 0.45 |
| SRDQH41 | 20.1 – 32.0 | 0.18 | 1.60 | 0.025 | 0.010 | 0.70 | 1.00 | 0.25 | 0.25 | 40 ppm | 0.48 |
| SRDQH42 | 32.1 – 50.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.57 |
| SRDQH43 | 50.1 – 70.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.65 |
| HARDNESS (BHN) | YS (MPa) | UTS (MPa) | %El (L0=50 mm) | Impact at -30°C (In Joules) | |
| Specified values | 370 – 430 | 900Min | 1100 | 10 | 30J Min (Longitudinal to rolling) |
| Typical indicative values for 20 mm | 390 – 410 | 1050 | 1240 | 12 | 40J |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
