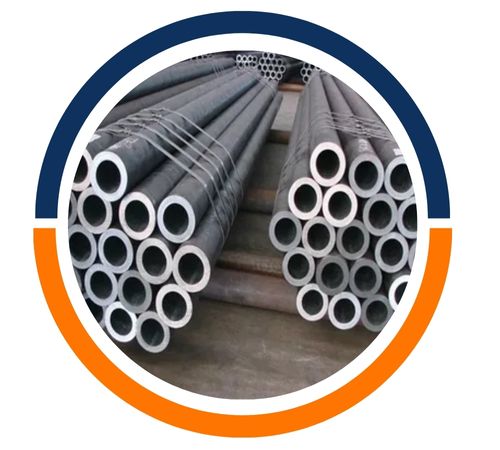

Liam Steel, located in Manila, Philippines, has built a solid reputation as a reliable manufacturer and supplier of top-notch Carbon Steel API X46 5L PSL 2 Pipes. These pipes are designed to deliver dependable and long-lasting solutions for the oil, gas, and petrochemical sectors. Crafted in line with API 5L PSL 2 standards, they boast impressive strength, toughness, and resistance to corrosion, ensuring safe and efficient performance even in the toughest conditions. Liam Steel prioritizes precision engineering, rigorous quality control, and consistent product performance, making their API X46 5L PSL 2 Pipes the go-to choice for pipeline infrastructure, energy projects, and industrial applications that demand high reliability and extended service life.
The Carbon Steel API X46 5L PSL 2 Pipes are primarily made up of carbon (≤0.24%), manganese (≤1.40%), phosphorus (≤0.03%), and sulfur (≤0.03%). These pipes deliver a minimum yield strength of 324 MPa and a tensile strength ranging from 415 to 540 MPa. With outstanding toughness, weldability, and resistance to fatigue, the API X46 5L PSL 2 Pipes are engineered to excel under high-pressure and challenging industrial environments, ensuring reliable and consistent mechanical performance.
| Grade of material | X46 / L320 (N, M, Q, R) |
| API 5L Gr X46 ERW and HFW | 1/2” NB – 24” NB |
| X46 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| Standard | ISO 3183 L320/ API 5L X46 |
| API 5L X46 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| PSL Level | |
| X46 Steel SAW | 16″ – 100″ NB |
| Surface Treatment | Pickling Galvanising Forging Capping Pre turning Powder Coating Degreasing Washing Copper Plating Cementing Chromium – Plating Brushing Nickle – Plating Roller Polishing Grinding Honing Shot Blasting Skiving PE Covering Roller Burnishing |
| Manufacturing process | Welded, Extrusion, Submerged Arc Welded (SAW), Seamless, Electro Fusion Seam Welded (EFSW), Longitudinally Submerged Arc Welded (LSAW), Cold Drawn Seamless (CDS), Hot Finish Seamless (HFS), Horizontal Submerged Arc Welded (HSAW), Electric Resistance Welded (ERW) |
| API 5L X46 PSL2 Pipe end | Squared Ends, Thread Cutting, Socket, Flanged Ends, Beveled End (BE), Cut Grooves, Square Cut, Grooved, Screwed, Vibrator Grinding, Coupling, Plain end (PE), Threaded Ends (Male & Female), Deburring, Chamfering, Buttweld, Pub Joints |
| Certificate | IBR, NACE, EN-10204:3.1, EN-10204:3.2, SSC, Sour-Service, HIC, |
| X46 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters, |
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| L320N or X46N | 0.24 | 0.4 | 1.2 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| L320Q or X46Q | 0.18 | 0.45 | 1.4 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 320 (46 400) | 435 (63 100) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X46 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Liam Steel is a leading supplier of high-quality Carbon Steel API X46 5L PSL 2 Pipes products in Manila, Philippines. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
You’ll find Carbon Steel API X46 5L PSL 2 Pipes commonly used in oil and gas transmission pipelines, both offshore and onshore drilling operations, petrochemical facilities, and water distribution systems. They are well-suited for transporting natural gas, crude oil, and various fluids under moderate to high pressure. Furthermore, these pipes are essential in refinery piping, infrastructure projects, and structural applications where durability, corrosion resistance, and adherence to API 5L PSL 2 standards are vital for safe and long-lasting performance.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
