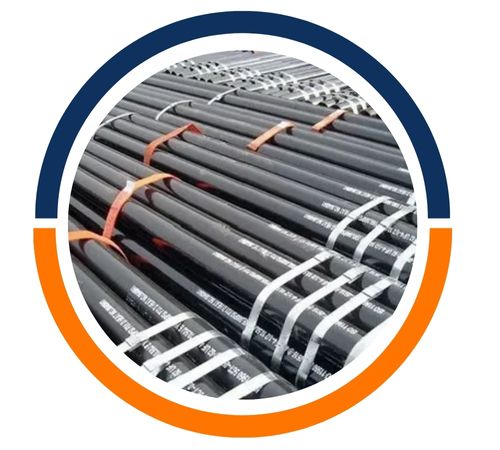

Liam Steel, a reputable manufacturer and supplier located in Manila, Philippines, is dedicated to providing top-notch Carbon Steel API X60 5L PSL 2 Pipes that are specifically crafted for high-performance industrial and pipeline applications. These pipes are produced in accordance with international API 5L PSL 2 standards, showcasing remarkable toughness, excellent weldability, and impressive resistance to high pressure and corrosion. Liam Steel takes pride in ensuring that every pipe adheres to strict quality and testing protocols, making them a dependable choice for transporting oil, gas, and water in vital infrastructure projects both in the Philippines and around the world.
The Carbon Steel API X60 5L PSL 2 Pipes are primarily made up of carbon (≤0.26%), manganese (≤1.40%), phosphorus (≤0.03%), and sulfur (≤0.03%). They boast improved chemical control and mechanical consistency when compared to PSL 1 pipes. With a minimum yield strength of 415 MPa and a tensile strength ranging from 520 to 760 MPa, these pipes deliver outstanding performance, toughness, and crack resistance. Their advanced mechanical and metallurgical characteristics make them perfect for demanding and rigorous applications.
| Grade of material | X60 / L415 (N, M, Q, R) /td> |
| Standard | ISO 3183 L415/ API 5L X60 |
| API 5L X60 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| X60 SAW | 16″ – 100″ NB |
| API 5L X60 PSL2 ERW and HFW | 1/2” NB – 24” NB |
| Grade L415 X60 LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| API 5L X60 PSL2 Pipe end | Pub Joints, Coupling, Deburring, Flanged Ends, Grooved, Buttweld, Beveled End (BE), Square Cut, Thread Cutting, Cut Grooves, Squared Ends, Chamfering, Plain end (PE), Threaded Ends (Male & Female), Vibrator Grinding, Socket, Screwed |
| X60 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters |
| API 5L X60 Wall Thickness | SCH160, SCH-STD, SCH-XXS, SCH-XS, SCH40, SCH80, |
| PSL Level | |
| Coating for API 5L X60 Line Pipe | Black Painting, 3PE, lined pipe, Galvanized, CRA clad, FBE, Varnished, 3PP, 3LPE, Anti-Rust Oi, |
| Manufacturing process | Electro Fusion Seam Welded (EFSW), Cold Drawn Seamless (CDS), Electric Resistance Welded (ERW), Submerged Arc Welded (SAW), Welded, Longitudinally Submerged Arc Welded (LSAW), Extrusion, Seamless, Horizontal Submerged Arc Welded (HSAW), Hot Finish Seamless (HFS) |
| Approvals | KNPC, Merkblatt W0, PED, EIL, HAF 604, L&T, BP, ISO 17025 for Laboratories, IBR, NORSOK M-650, Saudi Aramco, AD2000, PED 97/23/EC, ONGC, Shell |
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| CS PIPES | |||||||||||
| X60 | 0.24f | 0.45f | 1.4f | 0.025 | 0.015 | 0.10f | 0.05 | 0.04 | g,h | 0.43 | 0.25 |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 415(60 200) | 565(81 900) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NB | DN | OD (inches) | API 5L X60 Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 5 | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 160 | ||||
| 3/4″ | 20 | 1.05 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 1″ | 25 | 1.315 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 1.1/2″ | 40 | 1.9 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 2″ | 50 | 2.375 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 2.1/2″ | 65 | 2.875 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 3″ | 80 | 3.5 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 4″ | 100 | 4.5 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 5″ | 125 | 5.563 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 6″ | 150 | 6.625 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 8″ | 200 | 8.625 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 10″ | 250 | 10.75 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 12″ | 300 | 12.75 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Liam Steel is a leading supplier of high-quality Carbon Steel API X60 5L PSL 2 Pipes products in Manila, Philippines. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
These Carbon Steel API X60 5L PSL 2 Pipes find extensive use in oil and gas transportation systems, petrochemical industries, and high-pressure water pipelines. They are also well-suited for structural and offshore projects, refineries, and energy sectors that require reliable and durable piping solutions. With their exceptional strength, corrosion resistance, and capability to perform under extreme conditions, these pipes are crucial for essential operations. They ensure efficiency, safety, and longevity, playing a vital role in the development of industrial infrastructure across various heavy-duty sectors.
