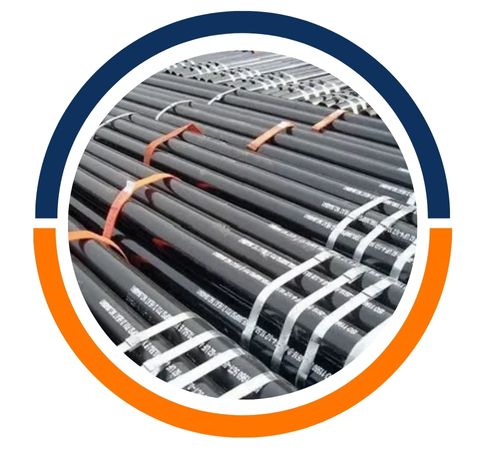

Liam Steel is a reputable manufacturer and supplier located in Manila, Philippines, with a focus on high-quality Carbon Steel JIS G3454 Pipes. The company has built a solid reputation thanks to its state-of-the-art production facilities, precision engineering, and strict adherence to both international and Japanese standards. Liam Steel offers durable, high-strength carbon steel pipes that are engineered for optimal performance in high-pressure and high-temperature environments. Catering to sectors like oil and gas, power generation, petrochemical, and construction, the company is recognized for its reliability, product excellence, and timely delivery to clients both locally and globally.
The Carbon Steel JIS G3454 Pipes are crafted in accordance with the Japanese Industrial Standard JIS G3454, which outlines the specifications for carbon steel pipes intended for pressure service at elevated temperatures. These pipes are primarily made up of carbon, manganese, phosphorus, and sulfur, which together provide outstanding mechanical strength, ductility, and toughness. They boast high tensile and yield strength, good weldability, and impressive resistance to oxidation and scaling when exposed to heat. Processes like normalization and annealing further boost their durability and structural integrity, making them suitable for critical applications.
| Standard | : | JIS G3454 |
| JIS G3454 Grade | : | STPG 410, STPG 370 |
| JIS G3454 Outer Dimensions | : | 6mm – 150mm |
| JIS G3454 Wall Thickness | : | 1.0mm – 20 mm THK |
| JIS G3454 | Elongation % | ||||
|---|---|---|---|---|---|
| C | Si | Mn | P | S | |
| STPG 370 | 0.25 max. | 0.35 max. | 0.30 to 0.90 | 0.040 max. | 0.040 max. |
| STPG 410 | 0.30 max. | 0.35 max. | 0.30 to 1.00 | 0.040 max. | 0.040 max. |
| JIS G3454 | Tensile strength | Yield point or proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No.11 and No.12 test pieces | No. 5 test pieces | No. 4 test piece | ||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| STPG 370 | 38 {373}min | 22{216} min | 30 min | 25 min | 23 min | 28 min |
| STPG 410 | 42{412}min | 25{245} min | 25 min | 20 min | 19 min | 24 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel JIS G3454 Pipe products in Manila, Philippines. Specializing in premium steel materials, we offer a comprehensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong focus on timely delivery and exceptional customer service, Jaxon Steel ensures the supply of top-grade materials that provide superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel JIS G3454 Pipe needs.
| Permissible Specified Outside Diameter and Specified Wall Thickness | ||
Specified Outside Diameter D mm (in.) | Specified Wall Thickness t mm (in.) | |
| Special Light Sizes a | Regular Sizes | |
| ≥ 10.3 (0.405) to < 13.7 (0.540) | — | ≥ 1.7 (0.068) to ≤ 2.4 (0.094) |
| ≥ 13.7 (0.540) to < 17.1 (0.675) | — | ≥ 2.2 (0.088) to ≤ 3.0 (0.118) |
| ≥ 17.1 (0.675) to < 21.3 (0.840) | — | ≥ 2.3 (0.091) to ≤ 3.2 (0.125) |
| ≥ 21.3 (0.840) to < 26.7 (1.050) | — | ≥ 2.1 (0.083) to ≤ 7.5 (0.294) |
| ≥ 26.7 (1.050) to < 33.4 (1.315) | — | ≥ 2.1 (0.083) to ≤ 7.8 (0.308) |
| ≥ 33.4 (1.315) to < 48.3 (1.900) | — | ≥ 2.1 (0.083) to ≤ 10.0 (0.394) |
| ≥ 48.3 (1.900) to < 60.3 (2.375) | — | ≥ 2.1 (0.083) to ≤ 12.5 (0.492) |
| ≥ 60.3 (2.375) to < 73.0 (2.875) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 14.2 (0.559) |
| ≥ 73.0 (2.875) to < 88.9 (3.500) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 20.0 (0.787) |
| ≥ 88.9 (3.500) to < 101.6 (4.000) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 22.0 (0.866) |
| ≥ 101.6 (4.000) to < 168.3 (6.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 25.0 (0.984) |
| ≥ 168.3 (6.625) to < 219.1 (8.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 219.1 (8.625) to < 273.1 (10.750) | ≥ 3.2 (0.125) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 273.1 (10.750) to < 323.9 (12.750) | ≥ 3.6 (0.141) to ≤ 5.2 (0.203) | > 5.2 (0.203) to ≤ 45.0 (1.771) |
| ≥ 323.9 (12.750) to < 355.6 (14.000) | ≥ 4.0 (0.156) to ≤ 5.6 (0.219) | > 5.6 (0.219) to ≤ 45.0 (1.771) |
| ≥ 355.6 (14.000) to < 457 (18.000) | ≥ 4.5 (0.177) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 457 (18.000) to < 559 (22.000) | ≥ 4.8 (0.188) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 559 (22.000) to < 711 (28.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 711 (28.000) to < 864 (34.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 52.0 (2.050) |
| ≥ 864 (34.000) to < 965 (38.000) | — | ≥ 5.6 (0.219) to ≤ 52.0 (2.050) |
| ≥ 965 (38.000) to < 1422 (56.000) | — | ≥ 6.4 (0.250) to ≤ 52.0 (2.050) |
| ≥ 1422 (56.000) to < 1829 (72.000) | — | ≥ 9.5 (0.375) to ≤ 52.0 (2.050) |
| ≥ 1829 (72.000) to < 2134 (84.000) | — | ≥ 10.3 (0.406) to ≤ 52.0 (2.050) |
Carbon Steel JIS G3454 Pipes find extensive use in industries that demand reliable performance under high pressure and temperature. They’re commonly utilized in boilers, heat exchangers, pressure vessels, and piping systems within refineries, power plants, and chemical processing facilities. These pipes are perfect for transporting steam, water, oil, and gases in challenging conditions. Their strength, corrosion resistance, and long service life make them the go-to choice for essential industrial operations where safety, efficiency, and durability are crucial for maintaining continuous system performance.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
