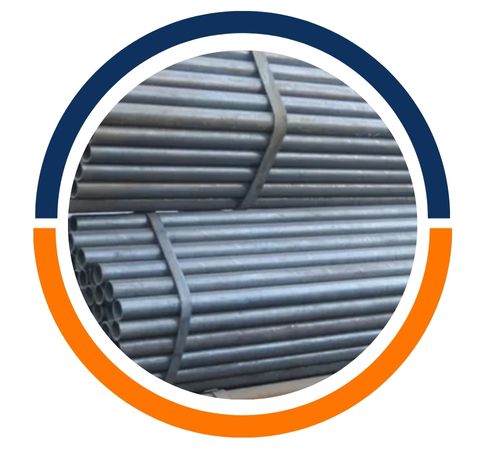

Liam Steel is a well-respected manufacturer and supplier located in Manila, Philippines, specializing in high-quality **Carbon Steel JIS G3456 Pipes** that meet rigorous industrial standards. Crafted in line with the **JIS G3456 specification**, these pipes are built for exceptional strength, durability, and reliability, especially in high-pressure and high-temperature settings. Thanks to advanced manufacturing techniques and strict quality control measures, Liam Steel guarantees consistent dimensions, mechanical properties, and overall performance. These pipes find their place in various industries, including oil and gas, petrochemical, power generation, and water treatment, where they are prized for their corrosion resistance, toughness, and long-lasting service life.
The composition of Carbon Steel JIS G3456 Pipes includes carbon, manganese, phosphorus, sulfur, and silicon, which together provide outstanding mechanical properties and structural integrity. They boast high tensile strength, good yield strength, and impressive hardness, making them perfect for challenging environments. Additionally, these pipes offer excellent ductility, impact resistance, and weldability, ensuring dependable performance in both moderate and high-pressure situations. Their strong chemical makeup allows them to endure thermal fluctuations, mechanical stress, and corrosive conditions, making them a top choice for critical industrial piping systems.
| Standards | JIS G3456 Carbon Steel Pipe |
|---|---|
| JIS G3456 Carbon Steel Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| JIS G3456 Carbon Steel Welded Pipe Size | 5.0 mm – 1219.2 mm |
| JIS G3456 Carbon Steel EFW Pipe size | 5.0 mm – 1219.2 mm |
| JIS G3456 Carbon Steel Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3456 Carbon Steel Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| JIS G3456 Carbon Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| JIS G3456 Carbon Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3456 Carbon Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| End | Plain End, Beveled End, Treaded Pipe & Tube |
| Marking | All JIS G3456 Carbon Steel Pipe are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Grade | C | Si | Mn | P | S |
| JIS G3456 STPT370 | ≤ 0.25 | 0.10-0.35 | 0.30-0.90 | ≤ 0.035 | ≤ 0.035 |
| JIS G3456 STPT410 | ≤ 0.30 | 0.10-0.35 | 0.30-1.00 | ≤ 0.035 | ≤ 0.035 |
| JIS G3456 STPT480 | ≤ 0.33 | 0.10-0.35 | 0.30-1.00 | ≤ 0.035 | ≤ 0.035 |
| Grade | Tensile Property (N/mm2) | Yield Point or Yield Strength (N/mm2) | Elongation (%) | |||
| NO. 11 Sample; NO. 12 Sample | NO. 5 Sample | NO. 4 Sample | ||||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| JIS G3456 STPT370 | ≥ 370 | ≥ 215 | ≥ 30 | ≥ 25 | ≥ 28 | ≥ 23 |
| JIS G3456 STPT410 | ≥ 410 | ≥ 245 | ≥ 25 | ≥ 20 | ≥ 24 | ≥ 19 |
| JIS G3456 STPT480 | ≥ 480 | ≥ 275 | ≥ 25 | ≥ 20 | ≥ 22 | ≥ 17 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is one of the prominent manufacturers and suppliers of high-quality Carbon Steel JIS G3456 Pipe in Manila, Philippines. Being a company of premium steel material, we have a comprehensive product range in the form of Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our wide inventory list consists of Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With commitments to time-to-market delivery and high quality of customer service, Jaxon Steel assures to deliver high-quality raw materials for better performance in any demanding industrial applications. Contact us today at Jaxon Steel to order all of your Carbon Steel JIS G3456 Pipe needs.
| Type | Allowable Deviation of Outer Diameter | Allowable Deviation of Wall Thickness | |||
| Hot-Working Seamless Steel Pipe | ＜50 mm | ± 0.5 mm | ＜ 4 mm ≥ 4mm | ± 0.5 mm ±12.5% | ≤ 20% of thickness |
| ≥ 50mm~＜160mm | ± 1% | ||||
| ≥ 160mm~≤ 200 mm | ± 1.6 mm | ||||
| ≥ 200 mm | ± 0.8% | ||||
| For ≥350 mm ones, we can measure according to the perimeters. Allowable deviation is ± 0.5%. | |||||
| Cold-Working Steel Seamless Pipe and Electric-Resistance Welded(ERW) Steel Pipe | ≤ 40 mm | ± 0.03 mm | ＜ 2 mm ≥ 2 mm | ± 0.2 mm ± 10 | |
Carbon Steel JIS G3456 Pipes are widely utilized in scenarios where safety, reliability, and durability are paramount. You’ll often find them in **oil and gas transmission lines, chemical processing plants, refineries, power generation facilities, and water supply systems**. These pipes ensure efficient flow, leak-proof performance, and resistance to wear and corrosion. Their impressive strength and durability make them suitable for both onshore and offshore applications. With Liam Steel’s JIS G3456 pipes, you can count on long-lasting performance, operational safety, and efficiency in complex industrial piping networks.
