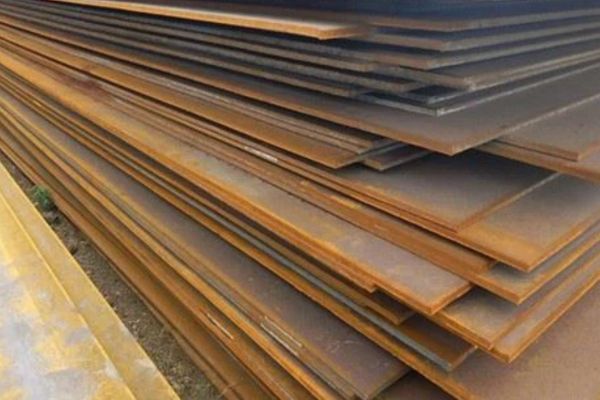

Liam Steel, a top-notch manufacturer and supplier located in Manila, Philippines, specializes in high-quality Corten Steel S355JOW Sheets and Plates. These products are celebrated for their exceptional corrosion resistance and weathering capabilities. When exposed to the elements, they develop a protective oxide layer that eliminates the need for painting, ensuring they stand the test of time. Crafted in line with EN 10025-5 standards, S355JOW sheets and plates blend strength, durability, and visual appeal. Perfect for structural and architectural uses, Liam Steel’s Corten Steel offerings are popular in bridges, buildings, outdoor sculptures, and industrial equipment, providing both functionality and a unique look.
Corten Steel S355JOW Sheets and Plates are made with a mix of carbon, manganese, phosphorus, sulfur, silicon, copper, chromium, and nickel. This unique blend boosts corrosion resistance and creates a stable, rust-like protective layer when exposed to the weather. The material boasts a tensile strength ranging from 470 to 630 MPa and a yield strength of about 355 MPa. It’s known for its excellent weldability, toughness, and formability, making it suitable for both cold and hot forming processes. The S355JOW grade guarantees a long service life outdoors while keeping structural integrity and mechanical stability intact.
Grade : S355JOW Corten Steel Plates
Standard : ASTM A588, A242 / ASME SA588, SA242
Width : 750mm to 1500mm,
Length : 2500mm to 12000mm
Thickness : 3MM to 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
|
Grade |
C |
Si |
Mn |
P |
S |
N |
Addition of nitrogen binding elements |
Cr |
Cu |
|
S355J0W |
0.16 |
0.50 |
0.50/1.50 |
0.035 |
0.035 |
0.009 |
– |
0.40/0.80 |
0.25/0.55 |
|
Grade |
Min. Yield Strength Reh MPa |
Tensile Strength Rm MPa |
|||||||
|
Nominal Thickness (mm) |
Nominal Thickness (mm) |
||||||||
|
≤16 |
>16 ≤40 |
>40 ≤63 |
>63 ≤80 |
>80 ≤100 |
>100 ≤150 |
>3 |
>3 ≤100 |
>100 ≤150 |
|
|
S355J0W |
355 |
345 |
335 |
325 |
315 |
295 |
510/680 |
470/630 |
450/600 |
Grade | Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JISG3114 |
S355JOW | 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A588 – A242 Gr. 1 | SMA 50 AW |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Corten Steel S355JOW Sheets and Plates are widely utilized in architectural, structural, and industrial settings where outstanding weather resistance is essential. They’re perfect for bridges, building facades, containers, and outdoor sculptures, thanks to their ability to develop a protective patina over time. These plates also find applications in railway wagons, chimneys, and heavy machinery. In construction, S355JOW steel not only provides strength but also adds aesthetic value, helping to lower maintenance costs and extend longevity. Its corrosion-resistant features make it a sustainable option for outdoor projects that face diverse environmental conditions.
