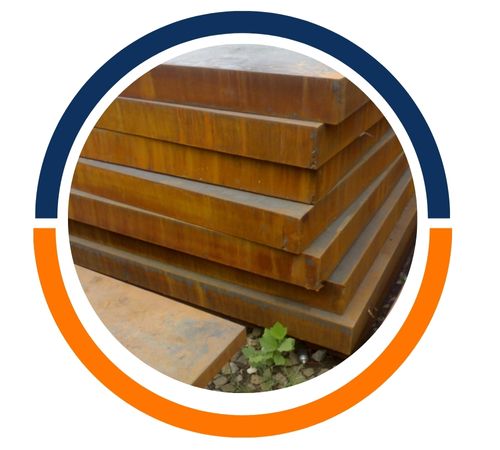

Liam Steel, a top-notch manufacturer and supplier located in Manila, Philippines, specializes in high-quality Corten Steel Sheet and Plate. Renowned for its remarkable weathering capabilities and durability, Corten steel is designed to endure tough atmospheric conditions. It naturally develops a protective oxide layer that prevents further corrosion, so there’s no need for painting. Liam Steel’s sheets and plates boast impressive structural strength and a long lifespan, making them perfect for both architectural and industrial uses. With cutting-edge manufacturing methods and strict quality control, Liam Steel guarantees that every Corten steel product merges aesthetic charm with dependable performance in outdoor and challenging environments.
Corten Steel Sheet and Plate is an alloy steel that includes carbon, manganese, silicon, phosphorus, sulfur, copper, chromium, and nickel. The blend of copper, chromium, and nickel enhances its resistance to atmospheric corrosion by creating a stable protective rust layer. It has a minimum yield strength of 355 MPa and a tensile strength ranging from 510 to 680 MPa. Corten steel is known for its excellent impact toughness, weldability, and structural integrity, even in outdoor settings. Its well-balanced mechanical properties ensure high strength, durability, and fatigue resistance, making it ideal for long-term use in construction and industrial projects.
Materials : Corten Steel Sheet/Plates

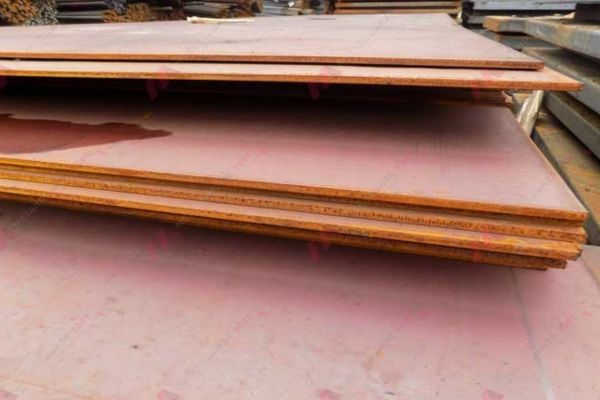

Standard : ASTM A588 / ASME SA588
Width : 750mm TO 1500mm
Length : 2500mm to 12000mm
Thickness : 0.8mm TO 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
| Corten – A Plates | ASTM 588 GR A | ASTM 242 TYPE -1 | IRSM 41 -97 | |
|---|---|---|---|---|
| Carbon, Max | 0.12 | 0.19 | 0.15 | 0.10 |
| Manganese | 0.20-50 | 0.80-1.25 | 1.00 | 0.25-0.45 |
| Phosphorus | 0.07-0.15 | 0.04 | 0.15 | 0.07-0.11 |
| Sulphur, max | 0.030 | 0.05 | 0.05 | 0.030 |
| Silicon | 0.25-0.75 | 0.30-0.65 | 0.25-0.40 | 0.28-0.72 |
| Nickel, max | 0.65 | 0.40 | – | 0.20-0.49 |
| Chromium | 0.50-1.25 | 0.40-065 | – | 0.30-0.50 |
| Molybdenum, max | – | – | – | – |
| Copper | 0.25-0.55 | 0.25-0.40 | 0.20 min | 0.30-0.39 |
| Vanadium | – | 0.02-0.10 | – | 0.050 |
| Aluminimum | – | … | – | 0.030 |
| Tensile Strength | Min. Yield Point | Elongation | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | [355 MPa] | 20 % min |
| ASTM 588 GR. A | [485 MPa] | [345 MPa] | 21% min |
| ASTM 242 TYPE -1 | [480 MPa] | [345 MPa] | 16% min |
| Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JIS G3114 |
|---|---|---|---|---|---|---|---|
| 1.8961 | S235J2W | WTSt 37-3 | E 24 W 4 | Fe 360 DK 1 | – | – | – |
| 1.8945 | S355J0WP | E 36 WA 3 | Fe 510 C1K1 | WR 50 A | – | – | – |
| 1.8946 | S355J2WP | – | E 36 WA 4 | Fe 510 D1K1 | – | A 242 Type 1 | – |
| 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A 588 – A 242 Gr. 1 | SMA 50 AW |
| 1.8963 | S355J2G1W | WTSt 52-3 | – | Fe 510 D2K1 | WR 50 C | A 588 Gr. A | to |
| 1.8965 | S355J2G2W | – | – | – | – | – | SMA 50 CP |
| 1.8966 | S355K2G1W | – | E 36 WB 4 | – | – | A 709 Gr. 50 W | – |
| 1.8967 | S355K2G2W | – | – | – | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is one of the most prominent manufacturers and suppliers of superior quality Corten Steel Sheet and Plate in Manila, Philippines. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Thickness | Width | Length |
|---|---|---|
| 1/2 inch | 48.00 inch | 120.00 inch |
| 1/4 inch | 60.00 inch | 120.00 inch |
| 1/4 inch | 48.00 inch | 120.00 inch |
| 3/8 inch | 48.00 inch | 120.00 inch |
| Thickness | Weight (lbs/ft) |
|---|---|
| 3/8″ | 15.315 |
| 1/4″ | 10.210 |
| 1/4″ | 10.210 |
| 1/2″ | 20.420 |
| FINISH | STOCK | SHEET SIZE MM | THICKNESS MM |
|---|---|---|---|
| Bright | Natural | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |

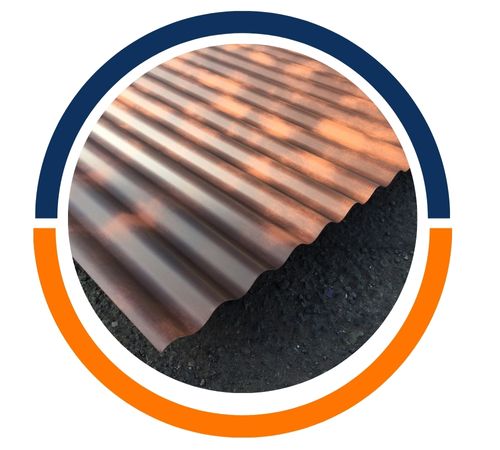

| Bright | Corrugated | 3000 x 1110 | 0.8 |
| Bright | Natural | 2500 x 1250 | 1 |
| Patina Rust (to order) | Rusted | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |
| Patina Rust (to order) | Rusted | 2500 x 1250 | 1 |
| Rusted (to order) | Corrugated | 3000 x 1110 | 0.8 |
Corten Steel Sheet and Plate finds extensive use in construction, architecture, and industrial applications where both durability and aesthetic appeal are crucial. Its natural rust-like finish and corrosion resistance make it perfect for bridges, building facades, sculptures, and outdoor structures. In the industrial and transportation sectors, Corten steel sheets and plates are utilized for containers, chimneys, storage tanks, and railway wagons. Its long-lasting weather resistance, combined with strength and minimal maintenance needs, makes it a go-to choice for various projects.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
