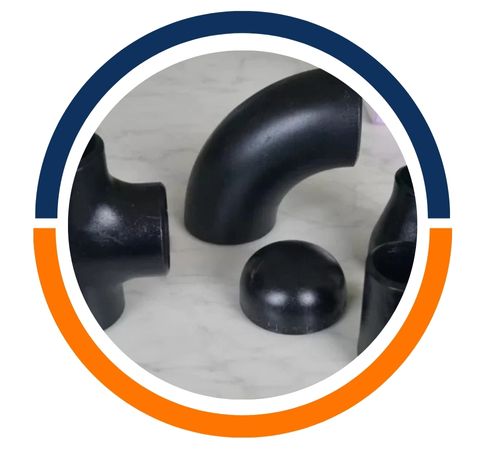

Liam Steel is a reputable manufacturer and supplier located in Manila, Philippines, known for its top-notch Carbon Steel WPHY 60 Pipe Fittings. These fittings are crafted to provide outstanding performance, strength, and reliability in high-pressure and high-temperature piping systems. With a focus on precision and compliance with global standards, Liam Steel’s WPHY 60 fittings guarantee secure, leak-proof connections. Industries like oil and gas, petrochemical, power generation, and offshore engineering trust these fittings for their durability, corrosion resistance, and exceptional mechanical properties, ensuring they last a long time.
The Carbon Steel WPHY 60 Pipe Fittings are mainly made up of carbon, manganese, phosphorus, sulfur, and silicon, all of which enhance their strength, ductility, and weldability. They boast a minimum yield strength of 415 MPa and a tensile strength of about 520 MPa, making them reliable in tough environments. These fittings also offer impressive toughness, hardness, and resistance to mechanical stress. Their robust metallurgical makeup allows them to endure extreme temperatures and pressures, making them perfect for heavy-duty industrial applications.
| Specification: | ASTM A860 WPHY 60 Fittings |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |

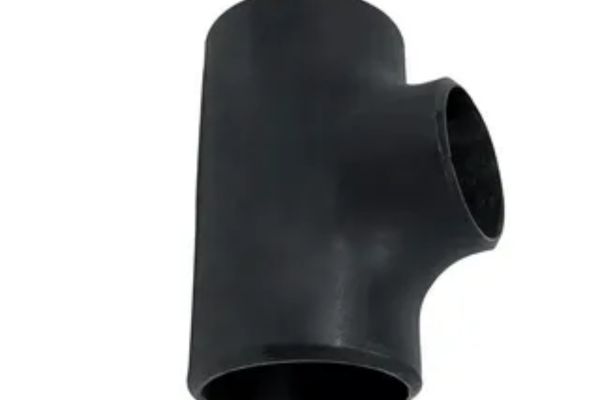

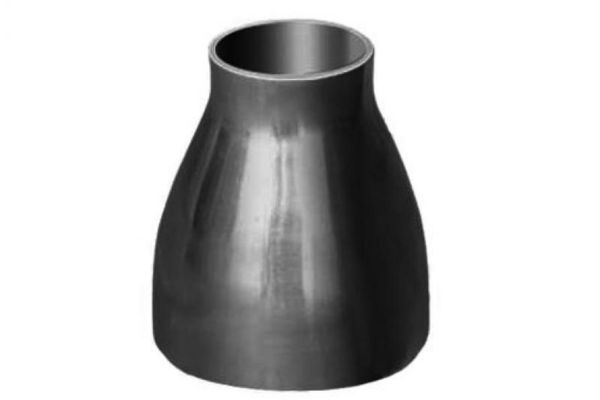

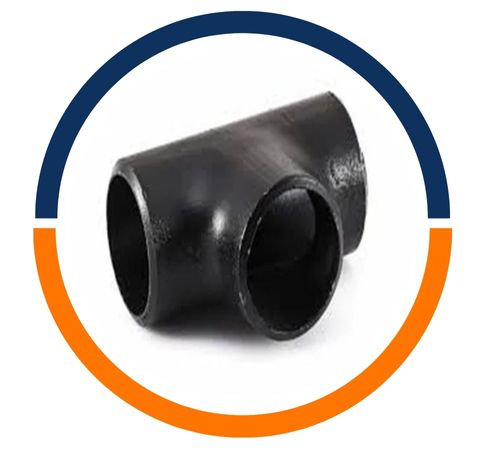

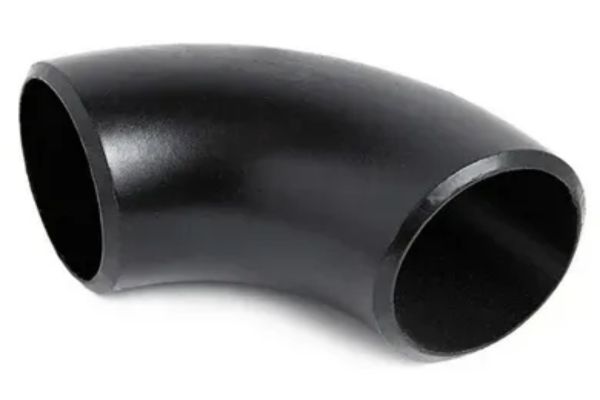

| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| ASTM A860 WPHY 60 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| ASTM A860 WPHY 60 Fittings | 415 | 515-690 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Liam Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 60 Pipe Fittings products in Manila, Philippines. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll find Carbon Steel WPHY 60 Pipe Fittings widely used in industries that demand dependable, high-strength components. They are commonly found in oil and gas transmission lines, chemical processing plants, power generation facilities, offshore platforms, and water treatment systems. These fittings facilitate smooth fluid flow and are highly resistant to pressure, vibration, and thermal changes. Their durability and straightforward installation make them suitable for both onshore and offshore operations. With Liam Steel’s WPHY 60 fittings, you can count on efficient, safe, and long-lasting performance in complex piping systems.
