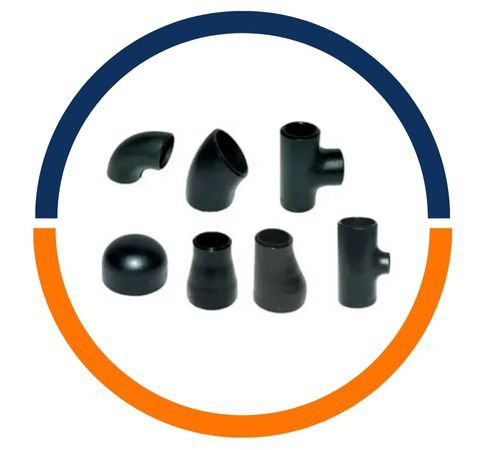

Liam Steel stands out as a top-notch manufacturer and supplier located in Manila, Philippines, specializing in high-quality Carbon Steel WPHY 80 Pipe Fittings for a variety of industrial uses. Renowned for their precision engineering and outstanding performance, these fittings are crafted to provide reliable connections and smooth flow in high-pressure piping systems. With state-of-the-art production facilities and rigorous quality control measures, Liam Steel ensures that their products meet international standards. Their WPHY 80 fittings are a go-to choice in sectors like oil and gas, petrochemicals, power generation, and other heavy-duty industries, thanks to their remarkable durability, strength, and resistance to corrosion.
The Carbon Steel WPHY 80 Pipe Fittings are made up of carbon, manganese, phosphorus, sulfur, silicon, and a few trace elements that boost their strength and weldability. They boast impressive mechanical properties, featuring a minimum yield strength of 550 MPa and a tensile strength of about 690 MPa. These fittings are known for their superior hardness, impact resistance, and elongation, ensuring they perform well even under extreme pressure and temperature conditions. Their sturdy composition offers excellent fatigue resistance, making them perfect for demanding applications in pipelines and process industries.
| Specifications: | ASTM A860 / ASME SA860 |
|---|---|
| Size: | Seamless Butt Weld Fittings : 1/2″ – 10″, Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1800, BS10 |
| Thickness: | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 80, 80, XS, 100, 120, 140, 180, XXS available with NACE MR 01-75 |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A860 Gr WPHY 80 Pipe Fitting |
| Type: | Seamless / Welded / Fabricated |
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Ti | V | cb | AI | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTM WPHY 80 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.04 | 0.06 | |
| Element | ASTM WPHY 80 | |
|---|---|---|
| Tensile Strength (mpa) | 485 | |
| Yield Strength (mpa) | 580 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Carbon Steel WPHY 80 Pipe Fittings are widely utilized in industries that demand high strength and durability in tough conditions. They’re commonly found in oil and gas transmission lines, refineries, chemical plants, power generation facilities, and offshore drilling systems. These fittings guarantee leak-proof connections and uninterrupted flow in both high-pressure and high-temperature settings. Their ability to withstand mechanical stress and corrosion makes them ideal for critical operations in petrochemical processing, shipbuilding, and water treatment plants. Liam Steel’s WPHY 80 fittings are vital for ensuring safety, reliability, and efficiency in complex piping networks.
Carbon Steel WPHY 80 Pipe Fittings are widely utilized in industries that demand high strength and durability in tough conditions. They’re commonly found in oil and gas transmission lines, refineries, chemical plants, power generation facilities, and offshore drilling systems. These fittings guarantee leak-proof connections and uninterrupted flow in both high-pressure and high-temperature settings. Their ability to withstand mechanical stress and corrosion makes them ideal for critical operations in petrochemical processing, shipbuilding, and water treatment plants. Liam Steel’s WPHY 80 fittings are vital for ensuring safety, reliability, and efficiency in complex piping networks.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
