Liam Steel is a well-respected manufacturer and supplier located in Manila, Philippines, focusing on Low Temperature Carbon Steel A420 WPL6 Pipe Fittings that deliver outstanding performance in cryogenic and low-temperature settings. These fittings are crafted to endure extreme cold, showcasing remarkable toughness, strength, and reliability even under pressure. Made from high-quality materials and with precise engineering, A420 WPL6 Pipe Fittings comply with international standards for demanding industrial uses. Liam Steel is dedicated to offering durable, leak-proof fittings for sectors like oil & gas, petrochemicals, and power generation, ensuring consistent quality and reliable performance in critical operations.
Low Temperature Carbon Steel A420 WPL6 Pipe Fittings are made up of carbon (≤0.30%), manganese (0.30–1.06%), phosphorus (≤0.035%), sulfur (≤0.040%), and silicon (0.13–0.37%). This well-balanced composition boosts strength, ductility, and impact resistance at sub-zero temperatures. The fittings provide a minimum yield strength of 240 MPa and a tensile strength ranging from 415 to 585 MPa, with exceptional notch toughness tested at −46°C. They also offer excellent weldability and formability, making A420 WPL6 fittings perfect for low-temperature pressure piping systems where safety and reliability are crucial.
Specifications : ASTM A420 / ASME SA420
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Grades : A420 WPL3 / A420 WPL6
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A420 WPL6 | 0.3 | 0.60-1.35 | 0.15-0.30 | 0.04 | 0.035 | 0.3 | 0.12 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) |
| A420 WPL6 | 60-85[415-585] | 35[240] |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

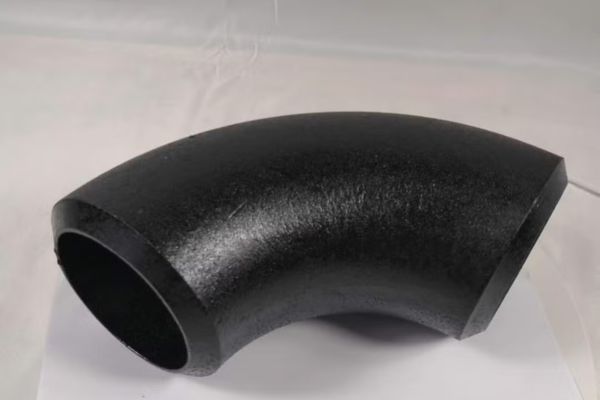

| Nom. Pipe Size | ASTM A420 Carbon Steel 90° Elbows | ASTM A420 Carbon Steel 45° Elbows | ASTM A420 Carbon Steel 180° Return Long Radius | |||||||||||
| Long Radius | Short Radius | 3R | Long Radius | 3R | STD | XS | ||||||||
| STD | XS | SCH. 160 | XXS | STD | XS | STD | XS | STD | XS | STD | XS | |||
| ½ | .18 | .25 | .09 | .19 | .35 | |||||||||
| ¾ | .19 | .25 | .09 | .19 | .40 | .65 | ||||||||
| 1 | .40 | .50 | .60 | .75 | .25 | 0.25 | .31 | .75 | 1.00 | |||||
| 1¼ | .60 | .90 | 1.00 | 1.38 | .4 | 0.38 | .50 | 1.25 | 1.75 | |||||
| 1½ | .90 | 1.15 | 1.80 | 1.50 | .56 | .75 | .40 | .69 | 1.88 | 2.39 | ||||
| 2 | 1.60 | 2.20 | 3.25 | 3.50 | 1.00 | 1.50 | 3.00 | 4.00 | .81 | 1.19 | 1.5 | 2.1 | 3.23 | 4.40 |
| 2½ | 3.25 | 4.00 | 5.13 | 7.00 | 2.13 | 2.80 | 6.00 | 8.00 | 1.75 | 2.13 | 3.00 | 4.00 | 6.50 | 8.00 |
| 3 | 5.00 | 6.50 | 8.50 | 11.0 | 3.00 | 4.25 | 10.0 | 13.0 | 2.63 | 3.50 | 5.00 | 7.00 | 10.25 | 13.00 |
| 3½ | 6.75 | 8.35 | 16.0 | 4.50 | 6.00 | 13.0 | 18.0 | 3.50 | 4.50 | 7.00 | 9.00 | 13.00 | 16.75 | |
| 4 | 9.00 | 13.5 | 18.0 | 20.0 | 6.25 | 8.50 | 18.0 | 25.0 | 4.50 | 6.10 | 9.00 | 13.0 | 18.5 | 25.0 |
| 5 | 15.0 | 22.0 | 32.0 | 36.0 | 9.60 | 14.0 | 29.0 | 43.0 | 7.50 | 10.7 | 15.0 | 22.0 | 30.0 | 44.0 |
| 6 | 24.5 | 35.0 | 57.0 | 65.0 | 18.0 | 23.0 | 45.0 | 70.0 | 12.0 | 17.5 | 23.0 | 35.0 | 50.0 | 70.0 |
| 8 | 50.0 | 71.0 | 120 | 118 | 34.0 | 47.5 | 90.0 | 140 | 23.0 | 35.0 | 45.0 | 70.0 | 95.0 | 142 |
| 10 | 88.0 | 107 | 260 | 58.0 | 70.0 | 159 | 218 | 43.0 | 53.0 | 80.0 | 109 | 117 | 215 | |
| 12 | 125 | 160 | 450 | 80.0 | 104 | 233 | 310 | 62.0 | 84.0 | 117 | 155 | 230 | 320 | |
| 14 | 160 | 205 | 572 | 105 | 140 | 298 | 400 | 80.0 | 100 | 149 | 200 | 325 | 400 | |
| 16 | 206 | 276 | 132 | 174 | 390 | 520 | 100 | 135 | 195 | 260 | 412 | 550 | ||
| 18 | 260 | 340 | 167 | 219 | 495 | 660 | 126 | 167 | 248 | 330 | 510 | 690 | ||
| 20 | 320 | 420 | 210 | 275 | 610 | 810 | 160 | 206 | 305 | 405 | 640 | 830 | ||
| 22 | 394 | 520 | 735 | 980 | 197 | 260 | 368 | 490 | 787 | 1040 | ||||
| 24 | 460 | 600 | 298 | 392 | 875 | 1170 | 238 | 300 | 438 | 585 | 890 | 1200 | ||
| 26 | 550 | 729 | 1030 | 1370 | 275 | 365 | 515 | 685 | ||||||
| 30 | 734 | 975 | 1370 | 1830 | 367 | 488 | 685 | 915 | ||||||
| 36 | 1062 | 1412 | 1970 | 2630 | 531 | 706 | 985 | 1315 | ||||||
Liam Steel is a top manufacturer and supplier of high-quality Low Temperature Carbon Steel A420 WPL6 Pipe Fittings products in Manila, Philippines. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Low Temperature Carbon Steel A420 WPL6 Pipe Fittings find extensive use in industries that manage cryogenic and low-temperature fluids. Typical applications include LNG processing plants, refrigeration units, petrochemical sectors, and natural gas transmission systems. These fittings are engineered to maintain toughness and integrity in extremely cold environments, effectively preventing leaks and failures. They are also utilized in power plants, refineries, and offshore platforms where robust performance and corrosion resistance are essential. With their impressive mechanical properties and ability to withstand harsh conditions, A420 WPL6 fittings are a reliable choice for critical applications.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
