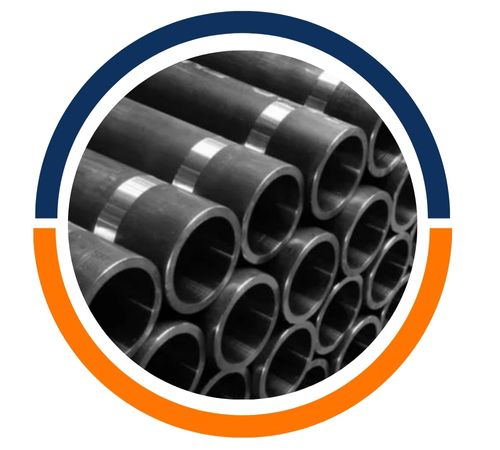

Liam Steel is a trusted manufacturer and supplier located in Manila, Philippines, specializing in top-notch EN10305-1 / EN10305-4 Seamless Tubing. Renowned for its precision manufacturing and strict adherence to international standards, the company delivers tubing solutions that guarantee an excellent surface finish, precise dimensions, and outstanding mechanical strength. These seamless tubes are crafted using cutting-edge technology to meet the demanding needs of various industries. Thanks to Liam Steel’s unwavering commitment to quality and performance, it has become a go-to choice for clients in sectors like automotive, hydraulics, mechanical engineering, and construction, both in the Philippines and beyond.
EN10305-1 / EN10305-4 Seamless Tubing is primarily made from fine-grain carbon steel, with small additions of manganese, silicon, sulfur, and phosphorus to boost its mechanical and forming properties. These tubes are known for their exceptional weldability, machinability, and dimensional accuracy. They boast high tensile strength ranging from 490–700 MPa, good yield strength, and impressive elongation, ensuring they are durable and resistant to pressure. Their seamless design provides superior strength and reliability, making them perfect for applications that require precision, toughness, and long-lasting stability under various operating conditions.
| Steel Name | Steel Number | C max. | Si max. | Mn max. | P max. | S max. | AL min. |
| E215 | 1.0212 | 0.10 | 0.05 | 0.7 | 0.025 | 0.025 | 0.025 |
| 1.0308 | 0.17 | 0.35 | 1.2 | 0.025 | 0.025 | / | |
| E355 | 1.058 | 0.22 | 0.55 | 1.6 | 0.025 | 0.025 | / |
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Number | +C | +LC | +SR | +A | +N | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290 to 430 | 25 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340 to 480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490 to 630 | 355 | 22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality EN10305-1 / EN10305-4 Seamless Tubing in Manila, Philippines. We offer premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to fast delivery and exceptional customer service, we source top-grade raw materials to ensure superior precision, strength, and durability for demanding industrial applications. Contact us today for all your EN10305-1 / EN10305-4 Seamless Tubing needs!
|
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
|
OD≤101.6 |
+0.4/-0.8 |
|
|
101.6＜OD≤177.8 |
+0.4/-1.2 |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD＜25.4 |
±0.10 |
|
|
25.4≤OD≤38.1 |
±0.15 |
|
|
38.1＜OD＜50.8 |
±0.20 |
|
|
50.8≤OD＜63.5 |
±0.25 |
|
|
63.5≤OD＜76.2 |
±0.30 |
|
|
76.2≤OD≤101.6 |
±0.38 |
|
|
101.6＜OD≤177.8 |
+0.38/-0.64 |
|
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤101.6, WT≤2.4 |
+40/-0 |
|
|
OD≤101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD≤101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD≤101.6, WT>4.6 |
+28/-0 |
|
|
OD>101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD>101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD>101.6, WT>4.6 |
+28/-0 |
|
|
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
|
|
OD>38.1 |
+22/-0 |
You’ll find EN10305-1 / EN10305-4 Seamless Tubing widely used in the automotive, hydraulic, and mechanical engineering sectors. It plays a crucial role in hydraulic cylinders, fuel injection systems, shock absorbers, and transmission shafts. Additionally, it’s employed in machinery manufacturing, construction equipment, and precision instruments due to its remarkable dimensional accuracy and strength. The seamless design guarantees consistent performance in high-pressure situations, while its smooth surface finish and durability make it ideal for critical applications that demand efficiency, safety, and a long service life.
