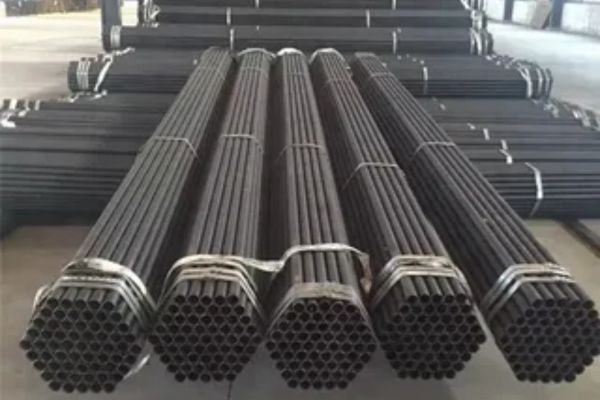

Liam Steel is a reputable manufacturer and supplier located in Manila, Philippines, with a focus on EN10305-2 / EN10305-3 ERW Tubing. Known for its precision engineering and top-notch quality, the company provides tubing solutions that adhere to strict international standards. These ERW (Electric Resistance Welded) tubes are crafted with remarkable dimensional accuracy, a smooth surface finish, and impressive mechanical strength, making them perfect for a variety of industrial applications. With state-of-the-art production facilities and rigorous quality control, Liam Steel guarantees reliable performance, durability, and consistency in every product, serving a wide range of sectors including automotive, construction, engineering, and hydraulics.
The EN10305-2 / EN10305-3 ERW Tubing is mainly made from carbon steel, enhanced with elements like manganese, silicon, and small amounts of sulfur and phosphorus to boost strength and formability. These tubes are known for their excellent weldability, machinability, and precise dimensions. On the mechanical side, they boast high tensile strength (typically ranging from 340 to 590 MPa), good yield strength, and impressive elongation, ensuring dependable performance even under pressure. These characteristics make the tubing suitable for both dynamic and static load-bearing applications, providing consistent performance in challenging operating conditions.
| Steel Name | Steel Number | C max, % max. | Si max, % max. | Mn max, % max. | P max, % max. | S max, % max. |
| E155 | 1.0033 | 0,11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0,15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0,17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0,21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0,22 | 0.55 | 1.60 | 0.025 | 0.025 |
| Steel Name | Â Â Steel Grade | Cold Drawn /Â Hard | Cold Drawn /Â Soft | Â Â Cold Drawn & stress relieved | Â Â Annealed | Â Â Normalised | |||||||
| Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | A, % | Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
||
|
E155 |
1.0033 |
400 |
6 |
350 |
10 |
350 |
245 |
18 |
260 |
28 |
270 – 410 |
155 |
28 |
|
E195 |
1.0034 |
420 |
6 |
370 |
10 |
370 |
260 |
18 |
290 |
28 | 300 – 440 |
195 |
28 |
|
E235 |
1.0308 |
490 |
6 |
440 |
10 |
440 |
325 |
14 |
315 |
25 | 340 – 480 |
235 |
25 |
|
E275 |
1.0225 |
560 |
5 |
510 |
8 |
510 |
375 |
12 |
390 |
21 |
410 – 550 |
275 |
21 |
|
E355 |
1.0580 |
640 |
4 |
590 |
6 |
590 |
435 |
10 |
450 |
22 | 490 – 630 |
355 |
22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality EN10305-2 / EN10305-3 ERW Tubing in Manila, Philippines. We provide premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to fast delivery and exceptional customer service, we source top-grade raw materials to ensure superior precision, strength, and durability for demanding industrial applications. Contact us today for all your EN10305-2 / EN10305-3 ERW Tubing needs!
|
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
|
OD≤101.6 |
+0.4/-0.8 |
|
|
101.6＜OD≤177.8 |
+0.4/-1.2 |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD＜25.4 |
±0.10 |
|
|
25.4≤OD≤38.1 |
±0.15 |
|
|
38.1＜OD＜50.8 |
±0.20 |
|
|
50.8≤OD＜63.5 |
±0.25 |
|
|
63.5≤OD＜76.2 |
±0.30 |
|
|
76.2≤OD≤101.6 |
±0.38 |
|
|
101.6＜OD≤177.8 |
+0.38/-0.64 |
|
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤101.6, WT≤2.4 |
+40/-0 |
|
|
OD≤101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD≤101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD≤101.6, WT>4.6 |
+28/-0 |
|
|
OD>101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD>101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD>101.6, WT>4.6 |
+28/-0 |
|
|
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
|
|
OD>38.1 |
+22/-0 |
EN10305-2 / EN10305-3 ERW Tubing is widely utilized in industries that demand precision and durability. In the automotive field, it’s used for shock absorbers, steering systems, and chassis components. In mechanical and hydraulic engineering, it plays a crucial role in manufacturing cylinders, machinery frames, and hydraulic lines. Additionally, it finds applications in furniture, construction, and general engineering for structural and mechanical support. Thanks to its smooth finish, precise dimensions, and outstanding mechanical performance, these tubes are perfect for applications that require reliability, strength, and consistent performance over long service periods.
